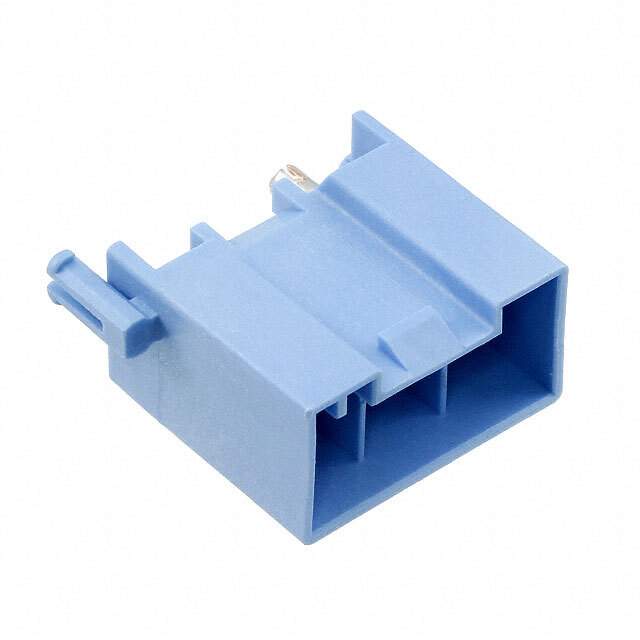

1747996-3 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Connector Type Header
Contact Type Tab
Number of Positions 2
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Through Hole
Termination Solder
Fastening Type Latch Lock
Insulation Height 0.705" (17.91mm)
Contact Shape Rectangular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA66), Nylon 6/6, Glass Filled
Features Board Lock
Temperature Range - Operating -30°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Blue
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 600VAC
Applications General Purpose, Industrial
Base Product Number 1747996
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 2266-1747996-3,-1747996-3-SI,A125454
Standard Package 150
Win Source Part Number 1334263-1747996-3
Ultra Librarian 3D Model Ultra Librarian 1747996-3 CAD Model

Description

The TE Connectivity AMP Connectors 1334263-1747996-3 header is a two-position connector with a board lock feature.

  • Positions: Two
  • Board Lock: Yes
  • Connector Type: Male pin
  • Mounting: Through-hole
  • Insulation Material: Polyamide (PA66), nylon 6/6, glass-filled
  • Design: Shrouded 4-wall
  • Contact Material: Copper alloy
  • Contact Type: Tab
  • Fastening Type: Latch lock
  • Termination: Solder
  • Voltage Rating: 600VAC
  • Temperature Range: -30°C to 105°C
  • Application: General-purpose and industrial
