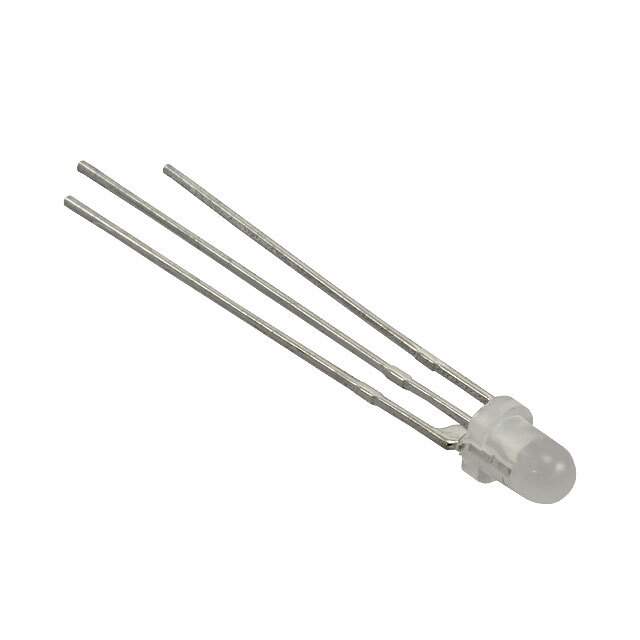

WP3VGYW Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Manufacturer Kingbright
Packaging Bulk
Color Green, Yellow
Configuration Common Cathode
Lens Color White
Lens Transparency Diffused
Millicandela Rating 40mcd Green, 15mcd Yellow
Lens Style Round with Domed Top
Lens Size 3mm, T-1
Voltage - Forward (Vf) (Typ) 2.2V Green, 2.1V Yellow
Current - Test 20mA Green, 20mA Yellow
Viewing Angle 60°
Mounting Through Hole
Wavelength - Dominant 568nm Green, 588nm Yellow
Wavelength - Peak 565nm Green, 590nm Yellow
Case / Package Radial - 3 Leads
Supplier Device Package T-1
Size / Dimension 3.00mm Dia
Height (Max) 6.93mm
Base Product Number WP3V
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Part Number 754-1223
Standard Package 500
Win Source Part Number 1331927-WP3VGYW
Ultra Librarian 3D Model Ultra Librarian WP3VGYW CAD Model

Description

The WP3VGYW is a 3mm LED indication component manufactured by Kingbright.

  • Component Type: LED Indication
  • Manufacturer: Kingbright
  • Package: Radial-3 leads
  • Configuration: Common cathode
  • Viewing Angle: 60°
  • Millicandela Rating: 40mcd for green and 15mcd for yellow
  • Voltage Forward: 2.2V for green and 2.1V for yellow
  • Current Test: 20mA for both colors
  • Wavelength Dominant: 568nm for green and 588nm for yellow
  • Wavelength Peak: 565nm for green and 590nm for yellow
