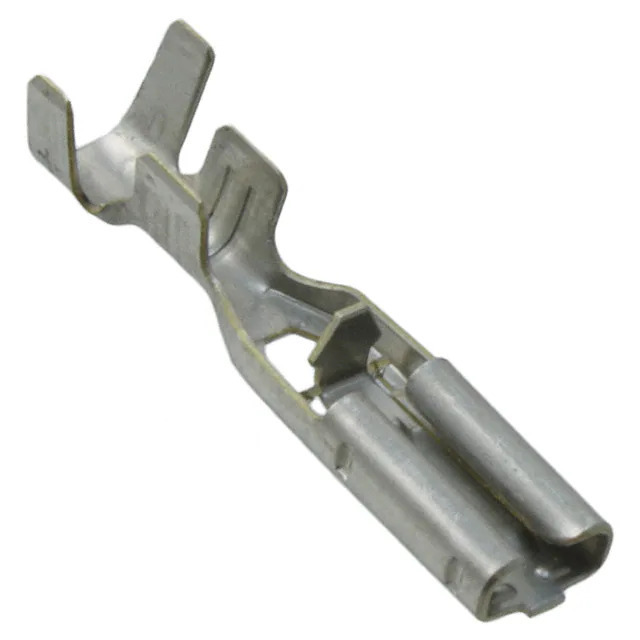

174778-1 TE Connectivity
Same model may have multiple batches, images only for reference.

174778-1

Part No 174778-1
Manufacturer TE Connectivity
Catalog Terminals
Description CONN QC RCPT 16-20AWG 0.110 / 0.110" (2.79mm) Quick Connect Female 16-20 AWG Crimp Connector Non-Insulated
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Quick Connects, Quick Disconnect Connectors
Mfr TE Connectivity AMP Connectors
Series Mark II
Package Bulk
Product Status Active
Terminal Type Standard
Gender Female
Tab Width 0.110" (2.79mm)
Tab Thickness 0.020" (0.51mm)
Tab Length 0.236" (6.00mm)
Length - Overall 0.677" (17.20mm)
Termination Crimp
Wire Gauge 16-20 AWG
Insulation Non-Insulated
Mounting Type Free Hanging (In-Line)
Features -
Color -
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.080" ~ 0.122" (2.03mm ~ 3.10mm)
Base Product Number 174778
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1364815-174778-1
Ultra Librarian 3D Model Ultra Librarian 174778-1 CAD Model

Description

The 1364815-174778-1 is a Quick Connect Terminal from TE Connectivity AMP Connectors.

  • Series: Mark II
  • Mounting: Free Hanging (In-Line)
  • Wire Gauge Range: 16-20 AWG
  • Contact Finish: Tin
  • Insulation: Non-Insulated
  • Tab Width: 0.110" (2.79mm)
  • Tab Thickness: 0.020" (0.51mm)
  • Tab Length: 0.236" (6.00mm)
  • Insulation Diameter Range: 0.080" ~ 0.122" (2.03mm ~ 3.10mm)
  • Gender: Female
  • Terminal Type: Standard
  • Packaging: Bulk
  • Status: Active
