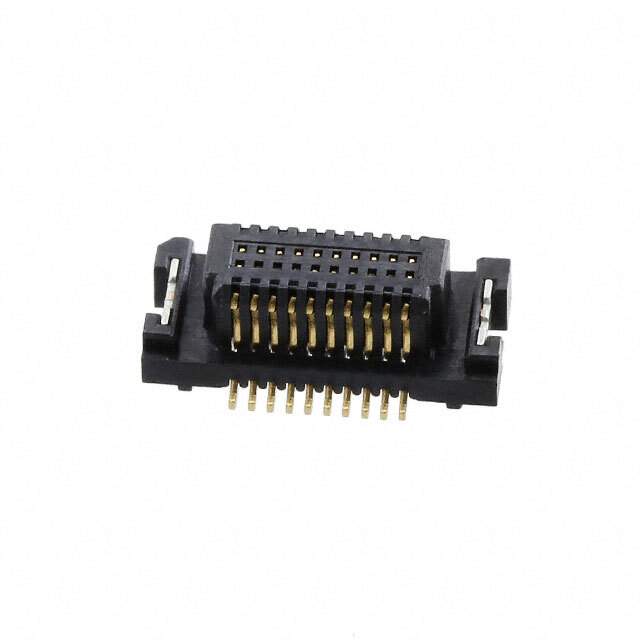

1747022-9 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr TE Connectivity AMP Connectors
Series Fine Mate
Package Tape & Reel (TR),Cut Tape (CT)
Product Status Obsolete
Connector Type Receptacle, Center Strip Contacts
Number of Positions 20
Pitch 0.020" (0.50mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 4mm, 4.5mm, 5.5mm, 6mm
Height Above Board 0.126" (3.20mm)
Base Product Number 1747022
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names 2266-1747022-9,A118063TR,-1747022-9-SI,A118063CT
Standard Package 5,000
Win Source Part Number 1018515-1747022-9
Ultra Librarian 3D Model Ultra Librarian 1747022-9 CAD Model

Description

The 1747022-9 is a 20-position receptacle connector from TE Connectivity AMP Connectors.

  • Series: Fine Mate
  • Positions: 20
  • Pitch: 0.020" (0.50mm)
  • Solder Retention: Yes
  • Contacts: Center Strip
  • Packaging: Tape and Reel (TR) or Cut Tape (CT)
  • Standard Package: 5,000
  • Mounting: Surface Mount
  • Height Above Board: 0.126" (3.20mm)
  • Mated Stacking Heights: 4mm, 4.5mm, 5.5mm, and 6mm
