XC3S400-5FG320C Amd

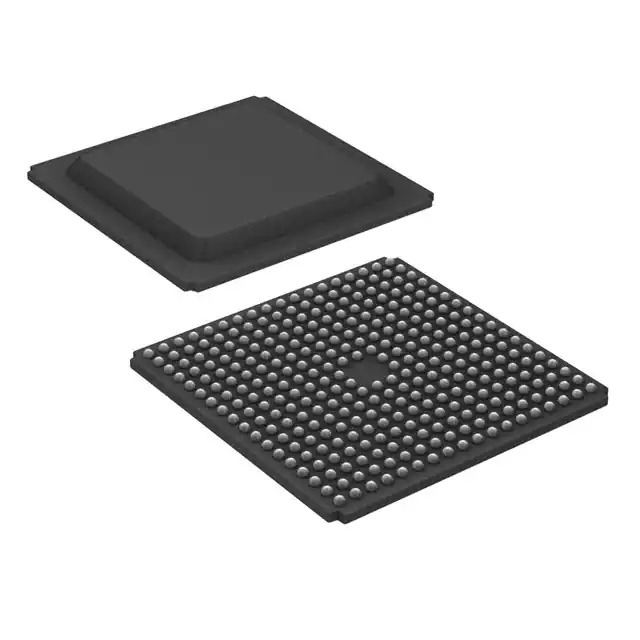

Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - FPGAs (Field Programmable Gate Array)
Mfr AMD
Series Spartan®-3
Package Bulk
Product Status Active
Number of LABs/CLBs 896
Number of Logic Elements/Cells 8064
Total RAM Bits 294912
Number of I/O 221
Number of Gates 400000
Voltage - Supply 1.14V ~ 1.26V
Mounting Type Surface Mount
Temperature Range - Operating 0°C ~ 85°C (TJ)
Package / Case 320-BGA
Supplier Device Package 320-FBGA (19x19)
Base Product Number XC3S400
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991D
HTSUS 8542.39.0001
Win Source Part Number 1352512-XC3S400-5FG320C
Ultra Librarian 3D Model Ultra Librarian XC3S400-5FG320C CAD Model

Description

The XC3S400-5FG320C is an embedded FPGA (Field Programmable Gate Array) manufactured by AMD.

  • Series: Spartan-3
  • Package: 320-BGA
  • Temperature Range: 0°C to 85°C
  • Voltage Supply: 1.14V to 1.26V
  • Logic Elements/Cells: 8,064
  • Total RAM Bits: 294,912
  • I/O Pins: 221
  • Mounting Type: Surface Mount
  • REACH: Compliant
  • Product Status: Active
