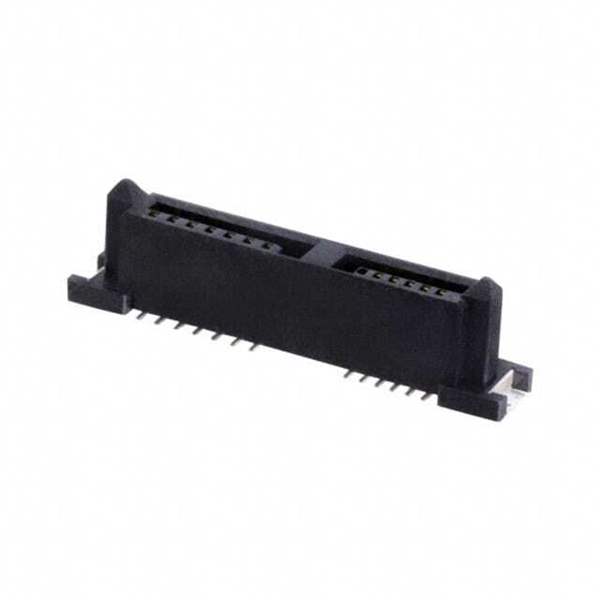

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Pluggable Connectors - Pluggable Connector Assemblies
Mfr TE Connectivity
Package Tape & Reel (TR)Cut Tape (CT)
Product Status Active
Connector Style Receptacle
Connector Type SATA
Number of Positions 13
Mounting Type Surface Mount
Termination Solder
Features Mating Guide, Solder Retention
Contact Finish Gold
Contact Finish Thickness 15.0µin (0.38µm)
Base Product Number 1735539
Standard Package 450 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 854154-1735539-2
Ultra Librarian 3D Model Ultra Librarian 1735539-2 CAD Model

Description

The 854154-1735539-2 is a SATA connector assembly designed for use in various electronic devices. The 854154-1735539-2 connector is an active product from TE Connectivity.

  • Connector Type: Receptacle
  • Termination: Solder
  • Positions: 13
  • Features: Mating guide, solder retention
  • Contact Finish: Gold
  • Contact Finish Thickness: 15.0µin (0.38µm)
  • Package: Tape & reel / Cut tape
  • Standard Package: 450 pcs
  • Mounting Type: Surface mount
  • Temperature Range: Unlimited
