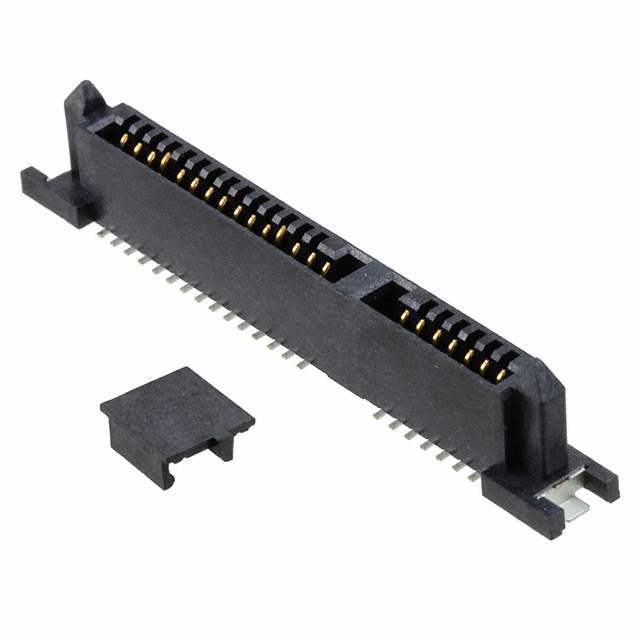

1735284-1 TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

1735284-1

Part No 1735284-1
Manufacturer TE Connectivity
Catalog Pluggable Connectors
Description CONN SATA RCPT 22POS SLD SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1209358-1735284-1
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects Pluggable Connectors Pluggable Connector Assemblies
Package Tray
Product Status Active
Connector Type SATA
Number of Positions 22
Mounting Type Surface Mount
Termination Solder
Features Board Lock
Ultra Librarian 3D Model Ultra Librarian 1735284-1 CAD Model

Description

22 Position SATA Receptacle Connector Solder Surface Mount
