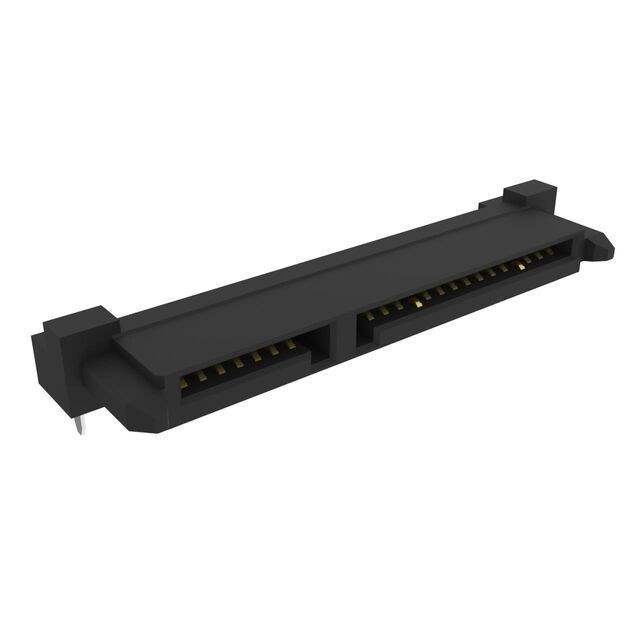

10029364-011TRLF Amphenol ICC (FCI)
Same model may have multiple batches, images only for reference.

10029364-011TRLF

Part No 10029364-011TRLF
Manufacturer Amphenol
Catalog Pluggable Connectors
Description CONN SATA RCPT 22POS SLD R/A SMD
Datasheet
10029364-011TRLF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1310669-10029364-011TRLF
Manufacturer Amphenol ICC (FCI)
Category Connectors, Interconnects > Pluggable Connectors > Pluggable Connector Assemblies
Packaging Tape & Reel (TR)
Part Status Active
Connector Type SATA
Number of Positions 22
Mounting Type Surface Mount, Right Angle
Termination Solder
Features Board Guide, Board Lock
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Ultra Librarian 3D Model Ultra Librarian 10029364-011TRLF CAD Model

Description

● Extends differential signaling from 1.5Gb/s to 12Gb/s

● Staggered contact lengths for hot plugging applications

● Contact range from 7 to 22 positions

● Various plating options available
