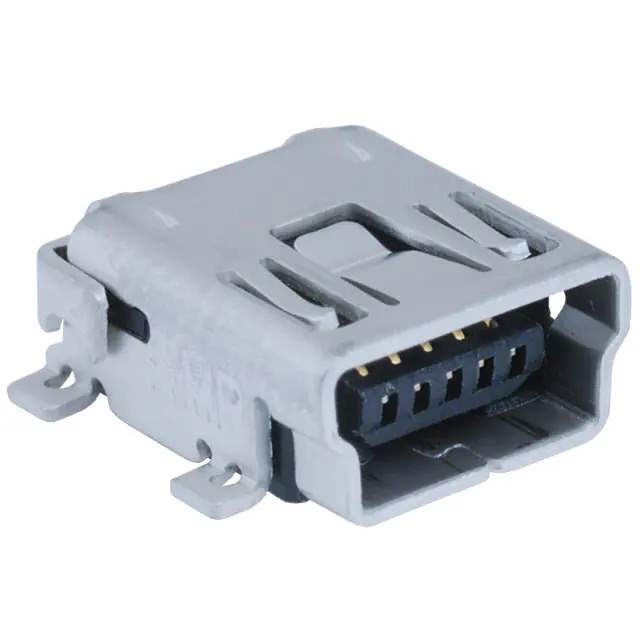

1734035-2 Real Image
Same model may have multiple batches, images only for reference.

1734035-2

Part No 1734035-2
Manufacturer TE Connectivity
Catalog USB, DVI, HDMI Connectors
Description CONN RCPT USB2.0 MINI B SMD R/A / USB - mini B USB 2.0 Receptacle Connector 5 Position Surface Mount, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - USB, DVI, HDMI Connectors - USB, DVI, HDMI Connector Assemblies
Mfr TE Connectivity
Package Tape & Reel
Product Status Active
Connector Type USB - mini B
Number of Contacts 5
Gender Receptacle
Specifications USB 2.0
Mounting Type Surface Mount, Right Angle
Mounting Feature Horizontal
Termination Solder
Features Board Guide, Solder Retention
Temperature Range - Operating -40°C ~ 85°C
Number of Ports 1
Current Rating (Amps) 1A
Voltage - Rated 30VAC
Mating Cycles 5000
Shielding Shielded
Contact Finish Gold
Shell/Shielding Material Steel (SUS304)
Material Flammability Rating UL94 V-0
Insulation Color Black
Base Product Number 1734035
Standard Package 700 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 846605-1734035-2
Ultra Librarian 3D Model Ultra Librarian 1734035-2 CAD Model

Description

The 1734035-2 is a USB mini B connector assembly from TE Connectivity. Bold the product name (e.g., BAV99S,135 → 1734035-2) and manufacturer (e.g., Nexperia USA Inc. → TE Connectivity).

  • Features: Board Guide, Solder Retention
  • Connector Type: USB 2.0
  • Shielding: Shielded
  • Contact Finish: Gold
  • Voltage Rating: 30VAC
  • Current Rating: 1A
  • Mounting Type: Surface Mount, Right Angle
  • Operating Temperature: -40°C to 85°C
  • Shell and Shielding Material: Steel (SUS304)
  • Package: Tape & Reel
  • Package Quantity: 700 pcs
  • REACH Status: Vendor Undefined
