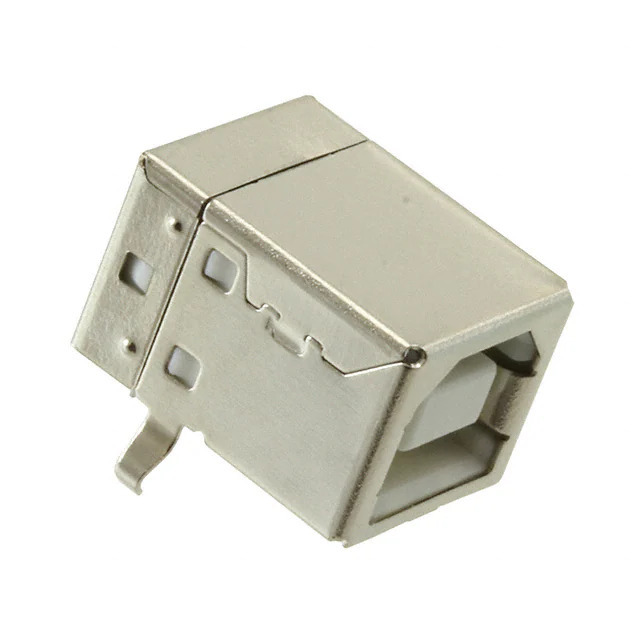

USB-B-S-F-B-TH Samtec Inc.
Same model may have multiple batches, images only for reference.

USB-B-S-F-B-TH

Part No USB-B-S-F-B-TH
Manufacturer Samtec Inc.
Catalog USB, DVI, HDMI Connectors
Description CONN RCPT USB2.0 TYPEB 4POS R/A / USB-B (USB TYPE-B) USB 2.0 Receptacle Connector 4 Position Through Hole, Right Angle
Datasheet
USB-B-S-F-B-TH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - USB, DVI, HDMI Connectors - USB, DVI, HDMI Connector Assemblies
Mfr Samtec Inc.
Series USB-B
Package Tray
Product Status Active
Connector Type USB-B (USB TYPE-B)
Number of Contacts 4
Gender Receptacle
Specifications USB 2.0
Mounting Type Through Hole, Right Angle
Mounting Feature Horizontal
Termination Solder
Features Board Lock
Ingress Protection -
Temperature Range - Operating -50°C ~ 85°C
Number of Ports 1
Current Rating (Amps) -
Voltage - Rated 30VAC
Mating Cycles 1500
Shielding -
Contact Finish Gold
Shell/Shielding Material Steel
Material Flammability Rating UL94 V-0
Insulation Color Black
Base Product Number USB-B
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1364373-USB-B-S-F-B-TH
Ultra Librarian 3D Model Ultra Librarian USB-B-S-F-B-TH CAD Model

Description

The Samtec Inc. USB-B-S-F-B-TH is a through-hole, right angle USB-B connector.

  • Series: USB-B
  • Application: USB, DVI, HDMI connector assemblies
  • Voltage Rating: 30VAC
  • Termination Method: Soldering
  • Flammability Rating: UL94 V-0
  • Color: Black
  • Mounting Feature: Horizontal
  • Gender: Receptacle
  • Mating Cycles: 1500
  • USB Standard: USB 2.0
  • Number of Contacts: 4
  • Number of Ports: 1
  • Shell/Shielding Material: Steel
