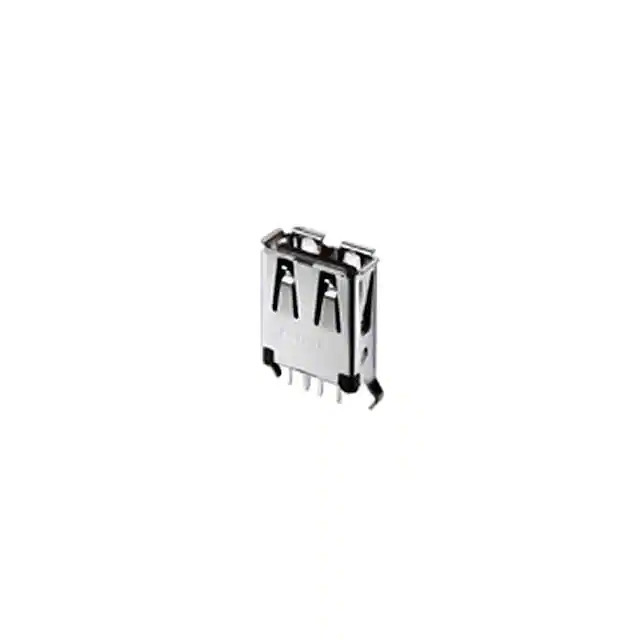

1734366-2 TE Connectivity
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - USB, DVI, HDMI Connectors - USB, DVI, HDMI Connector Assemblies
Mfr TE Connectivity AMP Connectors
Series -
Package Tray
Product Status Active
Connector Type USB-A (USB TYPE-A)
Number of Contacts 4
Gender Receptacle
Specifications USB 2.0
Mounting Type Through Hole
Mounting Feature Vertical
Termination Solder
Features Board Lock
Ingress Protection -
Temperature Range - Operating -40°C ~ 85°C
Number of Ports 1
Current Rating (Amps) 1A
Voltage - Rated 30VAC
Mating Cycles 1500
Shielding Shielded
Contact Finish Gold
Shell/Shielding Material Brass
Material Flammability Rating UL94 V-0
Insulation Color White
Base Product Number 1734366
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1365152-1734366-2
Ultra Librarian 3D Model Ultra Librarian 1734366-2 CAD Model

Description

The TE Connectivity AMP Connectors USB-A (USB TYPE-A) connector assembly is a high-quality component designed for use in USB, DVI, and HDMI applications.

  • Temperature Range: -40°C to 85°C
  • Features: Board Lock
  • Connector Type: USB-A (USB TYPE-A)
  • Contacts: 4
  • Ports: 1
  • Termination: Solder
  • Mounting Type: Through Hole
  • Contact Finish: Gold
  • Product Status: Active
  • Packaging: Tray
  • MSL: 1 (Unlimited)
  • Voltage Rating: 30VAC
  • ECCN: EAR99
