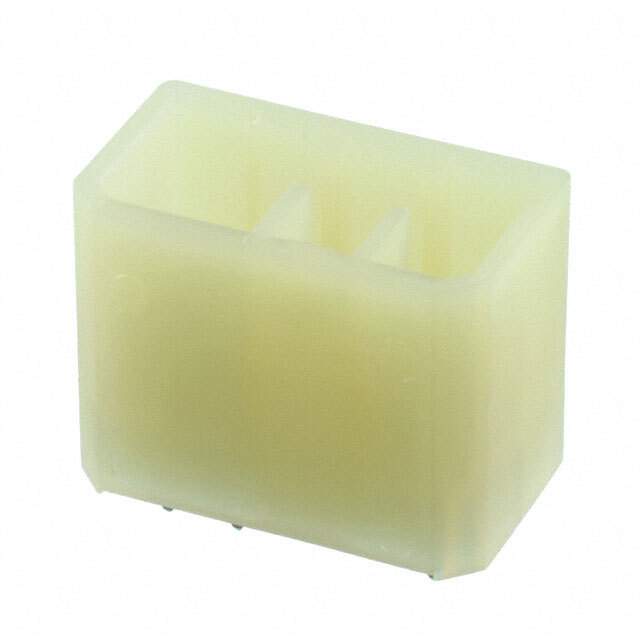

172036-1 Real Image
Same model may have multiple batches, images only for reference.

172036-1

Part No 172036-1
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER VERT 7POS / Connector Header Through Hole 7 position
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Connector Type Header
Contact Type Tab
Number of Positions 7
Number of Rows 2
Row Spacing - Mating 0.236" (6.00mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Through Hole
Termination Solder
Fastening Type Locking Ramp
Contact Length - Post 0.157" (4.00mm)
Insulation Height 0.866" (22.00mm)
Contact Shape Rectangular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA66), Nylon 6/6
Temperature Range - Operating -30°C ~ 105°C
Insulation Color Natural
Applications General Purpose
Base Product Number 172036
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 172036-1-ND,A122339,-172036-1-SI
Standard Package 1,120
Win Source Part Number 1332832-172036-1
Ultra Librarian 3D Model Ultra Librarian 172036-1 CAD Model

Description

The TE Connectivity AMP Connectors 1332832-172036-1 is a header connector designed for general purpose applications.

  • Manufacturer: TE Connectivity AMP Connectors
  • Application: General Purpose
  • Insulation Color: Natural
  • Feature: Shrouded with 4 walls
  • Row Spacing: 0.236" (6.00mm)
  • Contact Length (Post): 0.157" (4.00mm)
  • Contact Length (Mating): Not available
  • Insulation Material: Polyamide (PA66), Nylon 6/6
  • Contact Material: Brass
  • Contact Finish (Mating): Tin
  • Contact Finish (Post): Tin
  • Current Rating: Not available
  • Temperature Range: -30°C to 105°C
  • RoHS Compliant: Yes
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8536.69.4040
  • Other Part Numbers: 172036-1-ND, A122339, -172036-1-SI
  • Base Product Number: 172036
