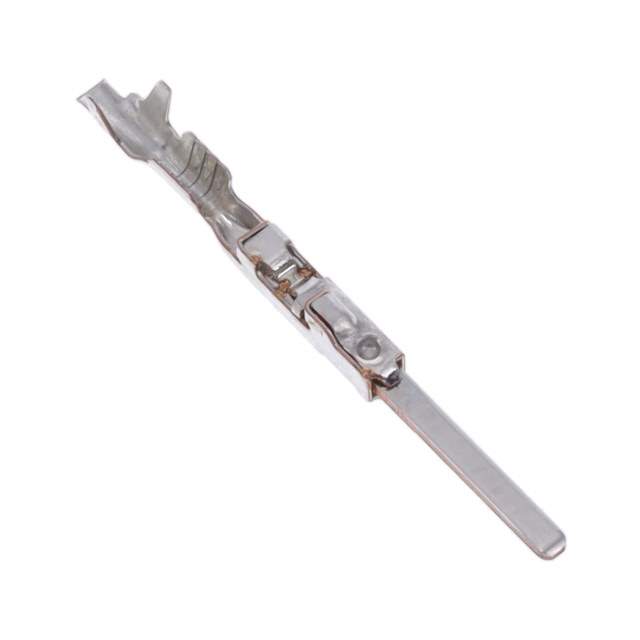

1718348-1 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Contacts
Mfr TE Connectivity AMP Connectors
Series MCON
Package Tape & Reel (TR) Cut Tape (CT)
Type Stamped
Pin or Socket Tab
Contact Termination Crimp
Wire Gauge 22-24 AWG
Contact Finish Tin
Base Product Number 1718348
Standard Package 10,000
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1338779-1718348-1
Ultra Librarian 3D Model Ultra Librarian 1718348-1 CAD Model

Description

The TE Connectivity AMP Connectors 1338779-1718348-1 is a Stamped type rectangular connector contact that belongs to the MCON series.

  • Type: Stamped
  • Shape: Rectangular
  • Series: MCON
  • Contact Finish: Tin
  • Wire Gauge: 22-24 AWG
