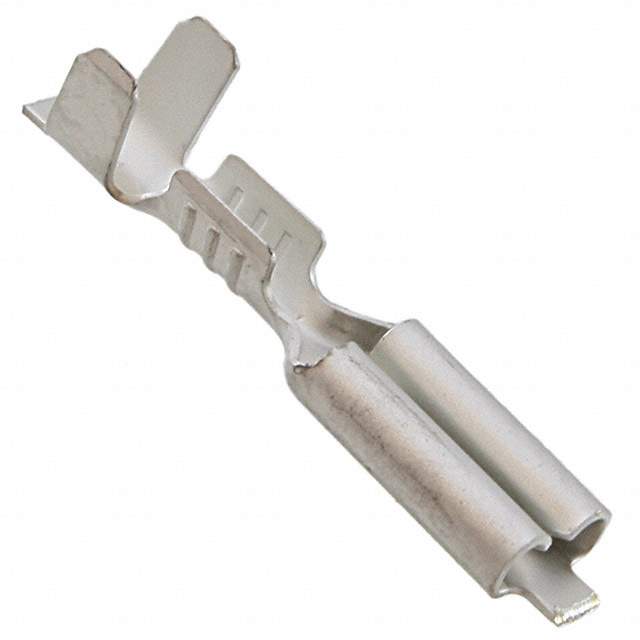

Same model may have multiple batches, images only for reference.

170043-2

Name: 170043-2
Brand: TE Connectivity
SKU: 985091
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	170043-2
Manufacturer	TE Connectivity
Catalog	Terminals
Description	CONN QC RCPT 20-24AWG 0.110 / 0.110" (2.79mm) Quick Connect Female 20-24 AWG Crimp Connector Non-Insulated
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Terminals - Quick Connects, Quick Disconnect Connectors
Mfr	TE Connectivity AMP Connectors
Series	Faston
Package	Tape & Reel (TR),Cut Tape (CT)
Terminal Type	Standard
Gender	Female
Tab Width	0.110" (2.79mm)
Tab Thickness	0.020" (0.51mm)
Tab Length	0.252" (6.40mm)
Length - Overall	0.606" (15.40mm)
Termination	Crimp
Wire Gauge	20-24 AWG
Insulation	Non-Insulated
Mounting Type	Free Hanging (In-Line)
Contact Material	Brass
Contact Finish	Tin
Insulation Diameter	0.079" ~ 0.118" (2.00mm ~ 3.00mm)
Base Product Number	170043
MSL Level	1 (Unlimited)
REACH Status	Vendor Undefined
ECCN	EAR99
HTSUS	8536.90.4000
Other Names	2266-170043-2TR,1700432,A107173CT,170043-2-ND,A107173TR
Standard Package	10,000
Win Source Part Number	985091-170043-2
Ultra Librarian 3D Model	Ultra Librarian 170043-2 CAD Model

Description

The TE Connectivity AMP Connectors 985091-170043-2 is a female terminal with a quick connect and disconnect feature.

Tab Width: 0.110 inches (2.79mm)
Tab Thickness: 0.020 inches (0.51mm)
Material: Brass
Contact Finish: Tin
Wire Gauges: 20-24 AWG
Insulation: Non-Insulated
Insulation Diameter: 0.079-0.118 inches (2.00-3.00mm)
Overall Length: 0.606 inches (15.40mm)
Tab Length: 0.252 inches (6.40mm)
RoHS Compliant: Yes
Standard Package: 10,000
