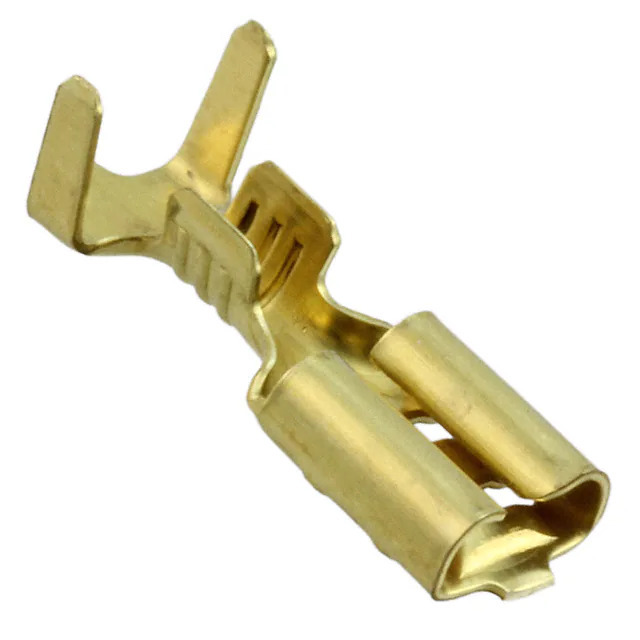

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Quick Connects, Quick Disconnect Connectors
Mfr TE Connectivity AMP Connectors
Series Faston
Package Tape & Reel (TR)
Product Status Active
Terminal Type Standard
Gender Female
Tab Width 0.187" (4.75mm)
Tab Thickness 0.032" (0.81mm)
Tab Length 0.250" (6.35mm)
Length - Overall 0.590" (14.99mm)
Termination Crimp
Wire Gauge 16-18 AWG
Insulation Non-Insulated
Mounting Type Free Hanging (In-Line)
Features -
Color -
Contact Material Brass
Contact Finish -
Insulation Diameter 0.105" (2.67mm)
Base Product Number 63769
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1364930-63769-1
Ultra Librarian 3D Model Ultra Librarian 63769-1 CAD Model

Description

The TE Connectivity AMP Connectors Faston series Quick Disconnect Connector is a reliable and efficient solution for connecting wires in electronic circuits.

  • Mounting Type: free-hanging (in-line)
  • Wire Gauge: 16-18 AWG
  • Tab Width: 0.187" (4.75mm)
  • Contact Material: brass
  • Terminal Type: standard
  • Overall Length: 0.590" (14.99mm)
  • Insulation Diameter: 0.105" (2.67mm)
  • Insulation: non-insulated
