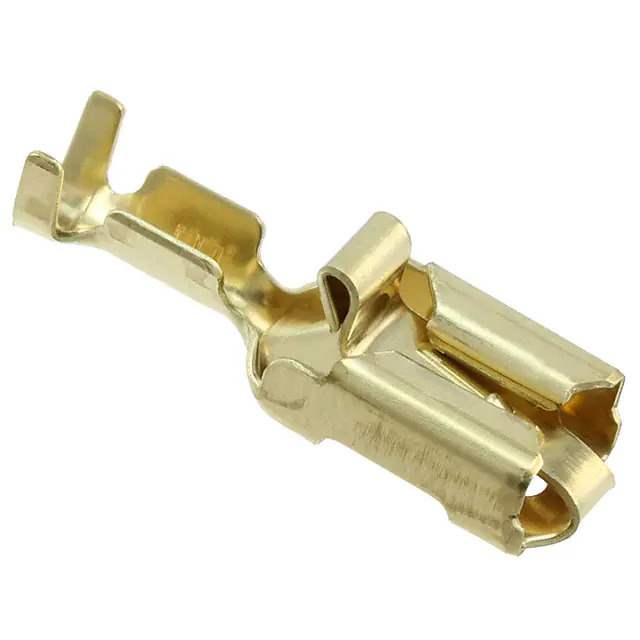

160759-1 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Quick Connects, Quick Disconnect Connectors
Mfr TE Connectivity
Series Mark I
Package Tape & Reel (TR)Cut Tape (CT)
Product Status Active
Terminal Type Standard
Gender Female
Tab Width 0.250" (6.35mm)
Tab Thickness 0.032" (0.81mm)
Length - Overall 0.878" (22.30mm)
Termination Crimp
Wire Gauge 16-20 AWG
Insulation Non-Insulated
Mounting Type Free Hanging (In-Line)
Contact Material Brass
Insulation Diameter 0.091" ~ 0.130" (2.31mm ~ 3.30mm)
Base Product Number 160759
Standard Package 1,500 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 905403-160759-1
Ultra Librarian 3D Model Ultra Librarian 160759-1 CAD Model

Description

The 905403-160759-1 is a female quick disconnect connector from the Mark I series by TE Connectivity.

  • Termination: crimp
  • Wire Gauge Range: 16-20 AWG
  • Contact Material: brass
  • Overall Length: 0.878 inches (22.30mm)
  • Tab Width: 0.250 inches (6.35mm)
  • Insulation: non-insulated
  • Insulation Diameter Range: 0.091 inches to 0.130 inches (2.31mm to 3.30mm)
  • Mounting: free hanging (in-line)
  • Packaging: tape & reel or cut tape
  • Standard Package Quantity: 1,500 pcs
