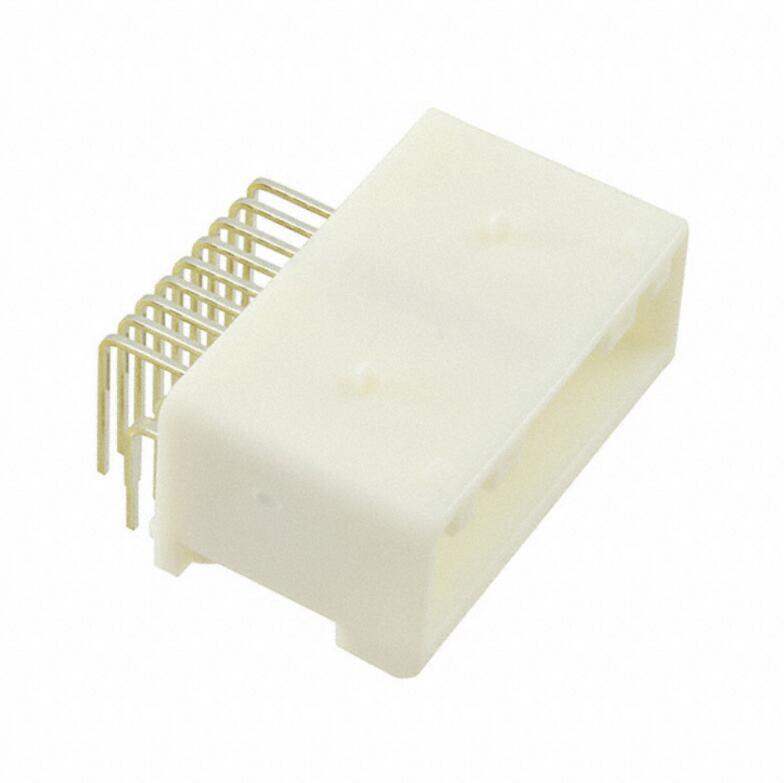

1674477-1 TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number WS1204438-1674477-1
Win Source Part Number Cross
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Package Tube
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.087" (2.20mm)
Number of Positions 20
Number of Rows 2
Ultra Librarian 3D Model Ultra Librarian 1674477-1 CAD Model

Description

Connector Header Through Hole, Right Angle 20 position 0.087" (2.20mm)
