Maxim Integrated MAX3747EUB+ Limiting Amplifier

The Maxim Integrated MAX3747EUB+ is a high-performance, compact limiting amplifier designed for optical networking applications that require precise signal conditioning. This device is specifically engineered to amplify low-level input signals to a constant output level, ensuring a consistent signal quality regardless of the input signal's amplitude variations. It is a critical component in the design of fiber optic receivers, where maintaining signal integrity is paramount for high-speed data transmission.

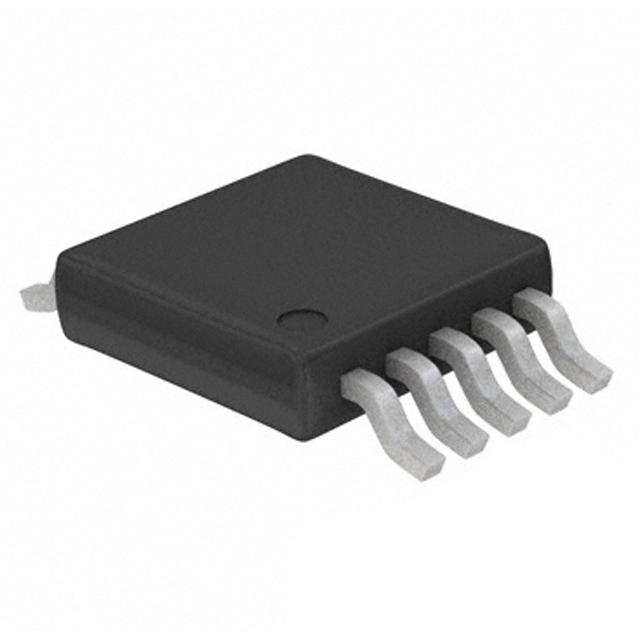

The MAX3747EUB+ operates within the frequency range of 10Mbps to 2.7Gbps, making it suitable for a variety of data rate requirements, including Gigabit Ethernet, Fibre Channel, and SONET/SDH applications. Its small 10-pin µMAX package allows for space-saving designs, which is essential for modern, compact optical modules and network equipment.

One of the standout features of the MAX3747EUB+ is its integrated loss-of-signal (LOS) detection circuitry. This feature allows the device to monitor the incoming signal and provide a digital indication when the signal falls below a user-adjustable threshold. This functionality is crucial for network reliability, enabling systems to quickly respond to signal degradation or loss.

In addition to its primary amplification and LOS detection capabilities, the MAX3747EUB+ offers a programmable output amplitude and a wide dynamic range, which can handle input signals from 5mVp-p to 1800mVp-p. This versatility makes it an excellent choice for a variety of optical network interfaces and transceiver modules.

The device is characterized for operation over the -40°C to +85°C temperature range, ensuring reliable performance in diverse environments. Its low power consumption is also an advantage for systems where efficiency is a concern.

Overall, the Maxim Integrated MAX3747EUB+ is a robust and flexible limiting amplifier that delivers consistent performance and is an ideal choice for designers working on high-speed optical communication systems.
