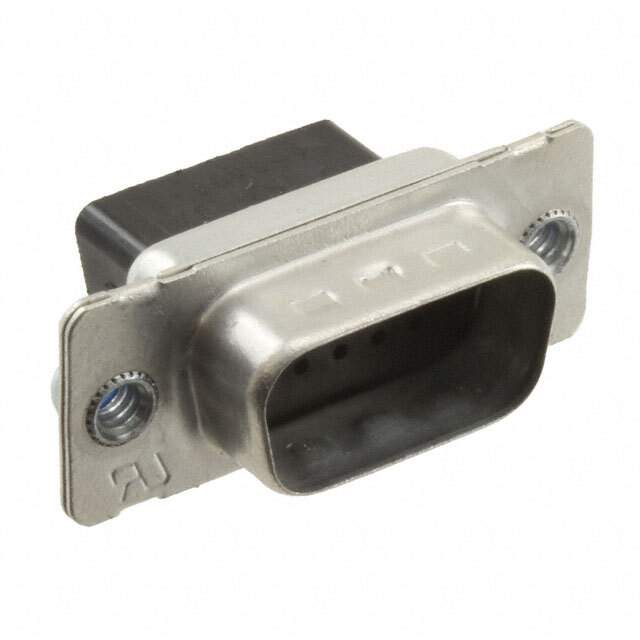

1658691-1 Real Image
Same model may have multiple batches, images only for reference.

1658691-1

Part No 1658691-1
Manufacturer TE Connectivity
Catalog D - Sub, D - Shaped Connectors - Housings
Description CONN D-SUB HD HOUSING PLUG 15POS
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 19 Weeks
Features Plug for Male Contacts Housing D-Sub, High Density Connector 15 Position
Manufacturer TE Connectivity
Series AMPLIMITE HDP-22
Package Bulk
Mounting Free Hanging (In-Line)
Family Name 1658691
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.8180
Other Part Number 16586911, -1658691-1-SI, 2266-1658691-1, 1658691-1-ND, A112615
Quantity per package 400
Popularity High
Supply and Demand Status Balance
Win Source Part Number 905431-1658691-1
Ultra Librarian 3D Model Ultra Librarian 1658691-1 CAD Model

Description

The TE Connectivity AMPLIMITE HDP-22 series is a high-density connector plug for male contacts housing D-Sub, with 15 positions.

  • Packaging: Supplied in bulk packaging
  • Mounting: Free hanging (in-line) mountable
  • Family Name: 1658691
  • Category: Connectors
  • ECCN: EAR99
  • Popularity: High popularity rating in the open market
  • Supply and Demand Status: Balanced
  • Quantity per package: 400
  • MSL Level: 1 (unlimited)
  • Estimated Production Lead Time: 19 weeks
  • REACH Status: Unaffected
  • HTSUS Code: 8538.90.8180
  • Other part numbers: 16586911, -1658691-1-SI, 2266-1658691-1, 1658691-1-ND, A112615
