Category Connectors, Interconnects>D-Sub, D-Shaped Connectors - Housings
Mfr TE Connectivity AMP Connectors
Series AMPLIMITE HDP-20
Package Bulk
Connector Style D-Sub
Connector Type Receptacle for Female Contacts
Number of Positions 37
Number of Rows 2
Shell Size, Connector Layout 4 (DC, C)
Contact Type Signal
Mounting Type Free Hanging (In-Line)
Flange Feature Housing/Shell (Unthreaded)
Shell Material, Finish Steel, Yellow Trivalent Chromium Chromate Zinc Plated
Shell Finish Thickness 200µin (5.08µm)
Dielectric Material Polyamide (PA), Nylon, Glass Filled
Color Black
Note Contacts Not Included
Base Product Number 205209
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.8180
Other Names 2052097,2266-205209-7,-205209-7-SI,A34110
Standard Package 300
Win Source Part Number 1032643-205209-7
Ultra Librarian 3D Model Ultra Librarian 205209-7 CAD Model

Description

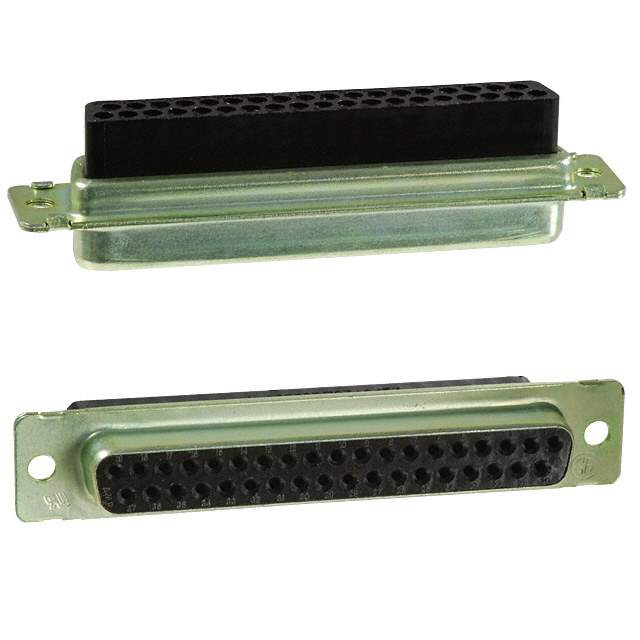

The TE Connectivity AMP Connectors 205209-7 is a two-row, 37-position, black D-sub connector housing from the AMPLIMITE HDP-20 series.

  • Positions: 37
  • Number of Rows: 2
  • Color: black
  • Series: AMPLIMITE HDP-20
  • Contact Gender: Receptacle female
  • Contact Type: signal
  • Packaging: bulk
  • Housing/Shell Flange Feature: unthreaded
  • Shell Material: steel
  • Shell Plating: yellow trivalent chromium chromate zinc plated
  • Dielectric Material: polyamide (PA), nylon, glass-filled
  • Ingress Protection: None
  • Shell Finish Thickness: 200μin (5.08μm)
  • Cross-Reference Parts: DCU-37P-K87, 164X11799X, 205209-2, L77SDC37S, L177RRC37S, 170-037-273L000, and 170-037-271-000205209-7
