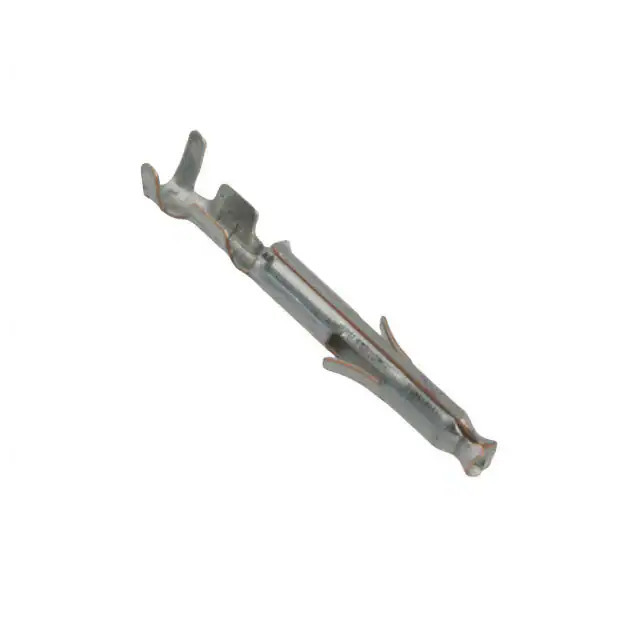

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Contacts - Multi Purpose
Mfr TE Connectivity AMP Connectors
Series Mini-Universal MATE-N-LOK
Package Bulk
Product Status Active
Type Stamped
Pin or Socket Socket
Contact Termination Crimp
Wire Gauge 18-22 AWG
Contact Material Brass
Contact Finish Tin
Contact Finish Thickness -
Base Product Number 170366
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1363041-170366-1
Ultra Librarian 3D Model Ultra Librarian 170366-1 CAD Model

Description

The Mini-Universal MATE-N-LOK series from TE Connectivity AMP Connectors offers versatile and reliable socket contacts for a wide range of applications.

  • Termination: Crimp
  • Wire Gauge: 18-22 AWG
  • Contact Finish: Tin
  • Base Product Number: 170366
  • Packaging: Bulk
