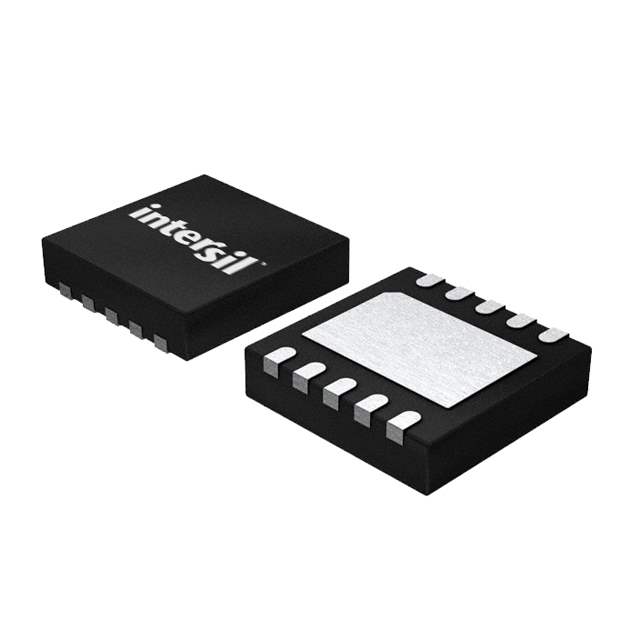

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Intersil
Packaging Tube/Rail
Status Active
Driven Configuration Half-Bridge
Channel Type Synchronous
Number of Drivers 2
Gate Type N-Channel MOSFET
Supply Voltage - Operating 6.8 V to 13.2 V
Current - Peak Output (Source, Sink) 1.25A, 2A
Input Type Non-Inverting
High Side Voltage - Max (Bootstrap) 36V
Rise and Fall Time 26ns, 18ns
Temperature Range - Operating 0°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package 10-DFN (3x3)
Win Source Part Number 040876-ISL6622ACRZ
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian ISL6622ACRZ CAD Model

Description

The Intersil ISL6622ACRZ is an integrated circuit used for synchronous half-bridge applications.

  • Manufacturer: Intersil
  • Application: Synchronous Half-Bridge
  • Driven Configuration: Half-Bridge
  • Gate Drivers: Two
  • Current Peak Output (Source): 1.25A
  • Current Peak Output (Sink): 2A
  • Temperature Range: 0°C to 125°C (TJ)
  • Package: 10-DFN (3x3)
  • Supply Voltage: 6.8V to 13.2V
  • Rise Time: 26ns
  • Fall Time: 18ns
  • Supply and Demand: Limited
