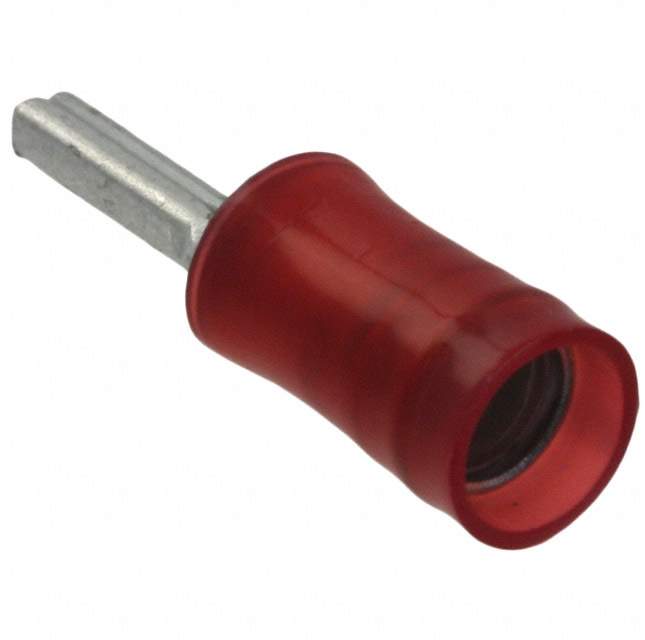

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Wire Pin Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Pin Diameter Circular - 0.071" (1.80mm) Dia
Length - Pin 0.264" (6.71mm)
Length - Overall 0.795" (20.19mm)
Wire Gauge 16-22 AWG (0.2~1.6mm²)
Insulation Diameter 0.142" (3.61mm)
Insulation Insulated
Termination Crimp
Features Serrated Termination
Color Red
Contact Material Copper
Contact Finish Tin
Material - Insulation Polyamide (PA), Nylon
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number -165142-LSI,2266-165142
Standard Package 1,000
Win Source Part Number 1333503-165142
Ultra Librarian 3D Model Ultra Librarian 165142 CAD Model

Description

TE Connectivity AMP Connectors' 1333503-165142 series is a wire pin connector that comes in bulk packaging.

  • Color: Red
  • Termination: Serrated
  • Termination: Crimp
  • Contact Finish: Tin
  • Wire Gauge: 16-22 AWG (0.2~1.6mm²)
  • Contact Material: Copper
  • Insulation Material: Polyamide (PA), Nylon
  • Insulated: Yes
  • Standard Package: 1,000
  • Overall Length: 0.795" (20.19mm)
  • Insulation Diameter: 0.142" (3.61mm)
  • Pin Length: 0.264" (6.71mm)
  • ROHS3 Compliant: Yes
  • ECCN: EAR99
  • REACH: Vendor undefined
  • HTSUS: 8536.90.4000
  • Other Part Numbers: -165142-LSI and 2266-165142
  • Pin Diameter: Circular - 0.071" (1.80mm) Dia.
