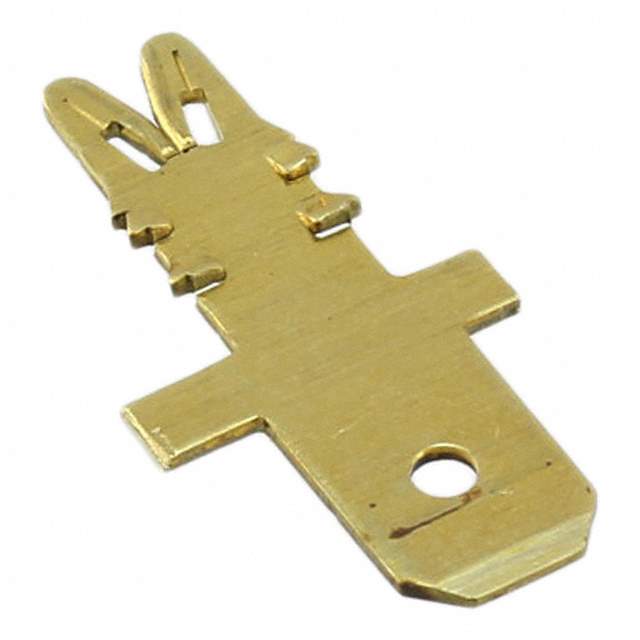

1601013-1 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Magnetic Wire Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Style Siameze
Terminal Type IDC Terminal
Termination Quick Connect
Wire Gauge 18-34 AWG
Features QC .187
Base Product Number 1601013
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number A111002CT,A111002TR,-131-057-000-SI-ND,-1601013-1-SI,2266-1601013-1,131-057-000,-131-057-000-SI,1601013-1-ND
Standard Package 20,000
Win Source Part Number 1333619-1601013-1
Ultra Librarian 3D Model Ultra Librarian 1601013-1 CAD Model

Description

TE Connectivity AMP Connectors' 1333619-1601013-1 is a magnetic wire connector designed for use in electronic applications.

  • Connector Style: Siameze
  • Wire Gauge: 18-34 AWG
  • Package: Reel
  • Standard Package: 20,000
  • QC Feature: .187
  • Termination: Quick Connect
  • Terminal Type: IDC Terminal
  • RoHS: Compliant
