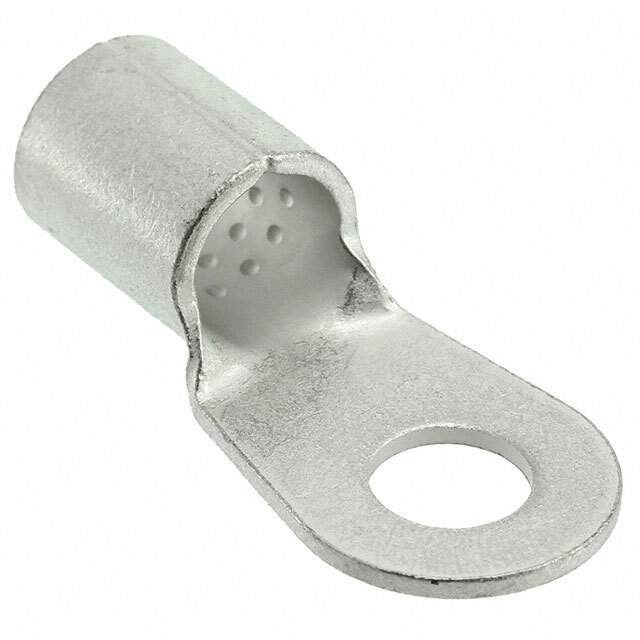

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Ring Connectors
Mfr TE Connectivity
Series Solistrand
Package Bulk
Product Status Active
Terminal Type Circular
Stud/Tab Size M10 Stud
Thickness 0.071" (1.80mm)
Width - Outer Edges 0.874" (22.20mm)
Length - Overall 1.957" (49.70mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp
Wire Gauge 1/0-1 AWG
Insulation Non-Insulated
Features Serrated Termination
Contact Material Copper
Contact Finish Tin
Base Product Number 1600
Standard Package 50 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 854066-160000
Ultra Librarian 3D Model Ultra Librarian 160000 CAD Model

Description

The 854066-160000 is a solistrand series ring connector from TE Connectivity.

  • Termination: Serrated
  • Termination Method: Crimp
  • Contact Finish: Tin
  • Wire Gauge: 1/0 to 1 AWG
  • Contact Material: Copper
  • Insulation: Non-Insulated
  • Standard Package: 50 pieces
  • Terminal Type: Circular
  • Thickness: 0.071 inches (1.80mm)
  • Width: 0.874 inches (22.20mm)
  • Overall Length: 1.957 inches (49.70mm)
  • Mounting: Free Hanging (In-Line)
  • Stud/Tab Size: M10 Stud
  • MSL Level: 1 (Unlimited)
  • REACH Status: Vendor Undefined
  • HTSUS Code: 8536.90.4000
  • Manufacturer: TE Connectivity
