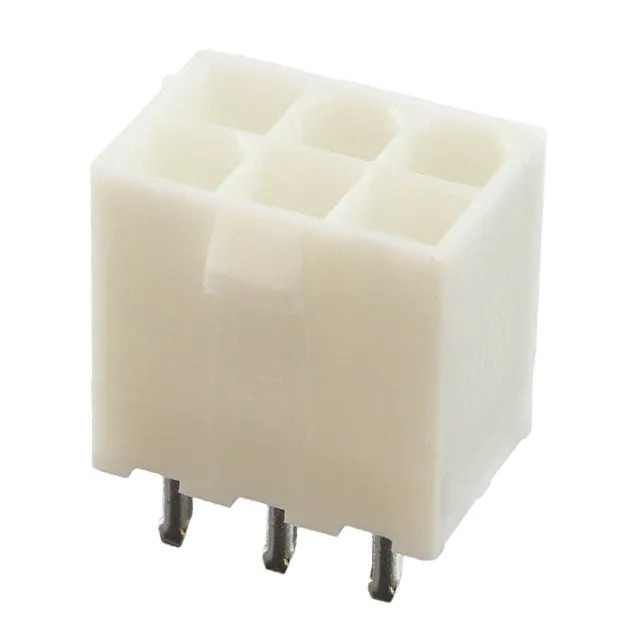

1586038-6 TE Connectivity
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series VAL-U-LOK
Package Tray
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.165" (4.20mm)
Number of Positions 6
Number of Rows 2
Row Spacing - Mating 0.165" (4.20mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Locking Ramp
Contact Length - Mating -
Contact Length - Post 0.138" (3.50mm)
Overall Contact Length -
Insulation Height 0.504" (12.80mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 80.0µin (2.03µm)
Contact Finish - Post Tin
Contact Material Brass Alloy
Insulation Material Polyamide (PA), Nylon
Features -
Temperature Range - Operating -40°C ~ 105°C
Ingress Protection -
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 9A
Voltage Rating 600VAC
Mated Stacking Heights -
Contact Finish Thickness - Post 80.0µin (2.03µm)
Applications General Purpose, Industrial, Lighting
Base Product Number 1586038
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1365221-1586038-6
Ultra Librarian 3D Model Ultra Librarian 1586038-6 CAD Model

Description

The VAL-U-LOK series from TE Connectivity AMP Connectors is a header connector with male pins.

  • Series: VAL-U-LOK
  • Mounting Type: Through Hole
  • Positions: 6
  • Rows: 2
  • Pitch: 0.165" (4.20mm)
  • Application: General Purpose, Industrial, Lighting
  • Current Rating: 9A
  • Voltage Rating: 600VAC
  • Features: Shrouded, 4 Walls
  • Product Status: Active
  • Base Product Number: 1586038
  • Packaging: Tray
  • HTSUS Code: 8536.69.4040
