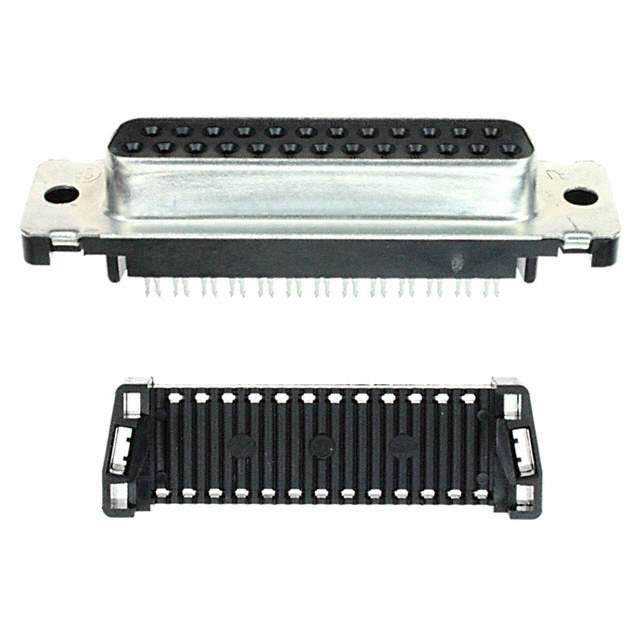

1658612-2 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub Connectors
Mfr TE Connectivity AMP Connectors
Series AMPLIMITE HDF-20
Package Bulk
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 25
Number of Rows 2
Mounting Type Free Hanging (In-Line)
Shell Size, Connector Layout 3 (DB, B)
Contact Type Signal
Flange Feature Housing/Shell (Unthreaded)
Termination IDC, Ribbon Cable
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Material Flammability Rating UL94 V-0
Current Rating (Amps) 1.25A
Features Feed Through
Color Black
Dielectric Material Thermoplastic
Wire Gauge 26-28 AWG, Stranded or Solid
Contact Material Phosphor Bronze
Temperature Range - Operating -55°C ~ 105°C
Base Product Number 1658612
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4051
Other Names AFR25B,16586122
Standard Package 40
Win Source Part Number 1032638-1658612-2
Ultra Librarian 3D Model Ultra Librarian 1658612-2 CAD Model

Description

The AMPLIMITE HDF-20 series connector from TE Connectivity AMP Connectors is a reliable solution for different electronic applications.

  • Positions: 25
  • Wire Gauge: 26-28 AWG stranded or solid
  • Contact Finish: gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Voltage Rating: -
  • Current Rating: 1.25A
  • Dielectric Material: thermoplastic
  • Shell Material: steel with a tin-plated finish
