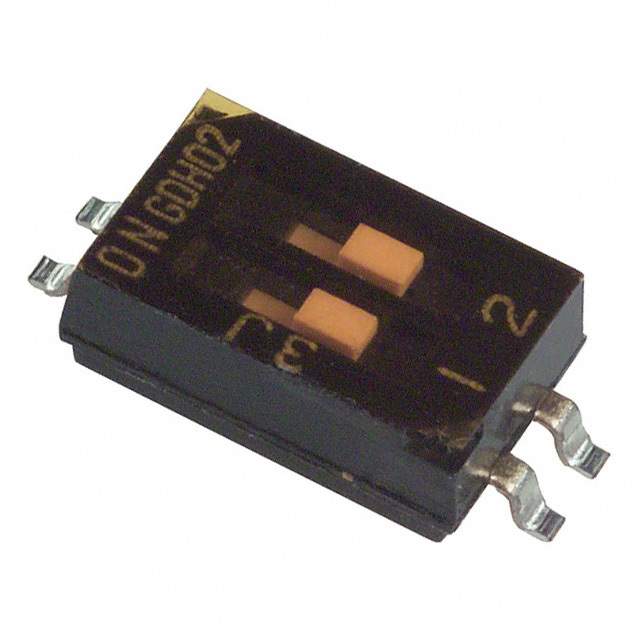

1571983-1 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Switches
Estimated Pruduction Lead Time 26 Weeks
Features Dip Switch SPST Position Surface Mount Slide (Standard) Actuator 25mA 24VDC
Manufacturer TE Connectivity
Series GDH
Package Tube
Operating Temperature Range -30°C ~ 85°C
Mounting Surface Mount
Family Name 1571983
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Other Part Number -1571983-1-SI, 450-1431, GDH02S04
Quantity per package 125
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 844713-1571983-1
Ultra Librarian 3D Model Ultra Librarian 1571983-1 CAD Model

Description

The TE Connectivity 844713-1571983-1 is a high-quality electronic component that is designed for use in a variety of different applications and is manufactured by TE Connectivity.

  • Series: GDH
  • Popularity: Medium
  • Type: DIP Switch SPST
  • Mounting: Surface Mount
  • Actuator: Slide (Standard)
  • Current Rating: 25mA @ 24VDC
  • Package: Tube
  • Mounting Type: Surface Mounting
  • Family: 1571983
  • ECCN: EAR99
