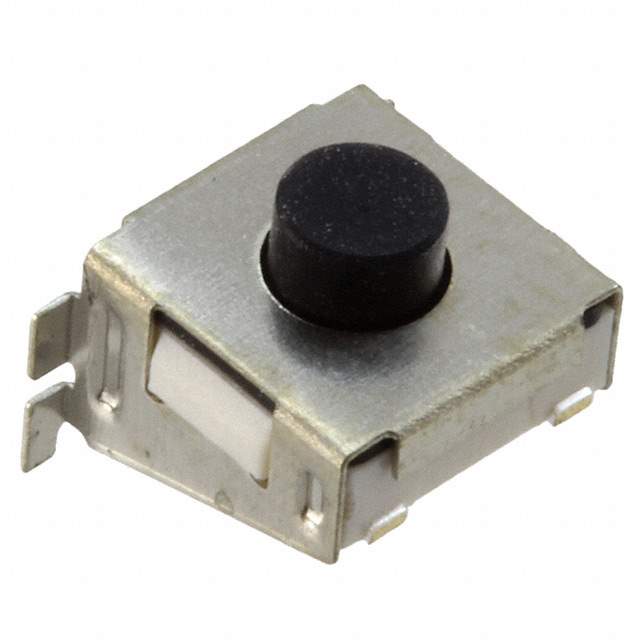

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>Tactile Switches
Mfr TE Connectivity ALCOSWITCH Switches
Package Tape & Reel
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 24VDC
Actuator Type Standard
Mounting Type Surface Mount, Right Angle
Actuator Orientation Side Actuated
Termination Style SMD (SMT) Tab
Outline 7.64mm x 4.40mm
Illumination Non-Illuminated
Operating Force 260gf
Ingress Protection IP67 - Dust Tight, Waterproof
Features Sealed - Fully
Temperature Range - Operating -35°C ~ 85°C
Actuator Material Silicon Rubber
Switch Travel 0.35mm
Mechanical Life 1,000,000 Cycles
Base Product Number 1571407
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Other Names 450-1830,450-1830-2,450-1830-1,-1571407-2-SI,450-1830-ND,450-1830-6,1571407-2-ND
Standard Package 17,000
Win Source Part Number 995053-1571407-2
Ultra Librarian 3D Model Ultra Librarian 1571407-2 CAD Model

Description

This electronic component is a sealed tactile switch with an IP67 ingress protection rating, making it dust tight and waterproof.

  • Win Source Part Number: 995053-1571407-2
  • Circuit: SPST-NO
  • Switch Function: Off-Mom
  • Actuator Type: Standard
  • Switch Travel: 0.35mm
  • Contact Rating: 0.05A @ 24VDC
  • Mechanical Life: 1,000,000 cycles
  • Operating Force: 260gf
  • Temperature Range: -35°C ~ 85°C
  • Ingress Protection: IP67
