TL2230OAF140 E-Switch – Price, Stock & Datasheet

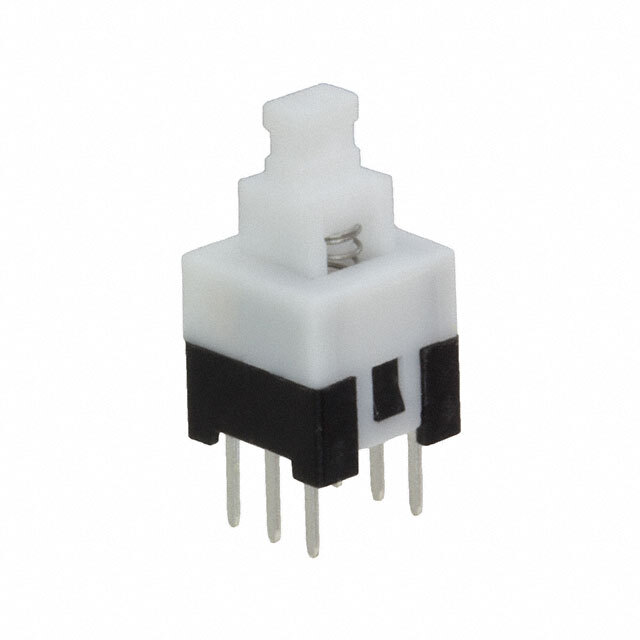

Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category SwitchesPushbutton Switches
Mfr E-Switch
Series TL2230
Packaging Bulk
Part Status Active
Mounting Type Through Hole
Type Standard
Circuit DPDT
Switch Function On-Mom
Current Rating (Amps) 100mA (DC)
Voltage Rating - DC 30 V
Actuator Type Plunger for Cap
Actuator Marking No Marking
Termination Style PC Pin
Electrical Life 10,000 Cycles
Base Product Number TL2230
Ultra Librarian 3D Model Ultra Librarian TL2230OAF140 CAD Model
