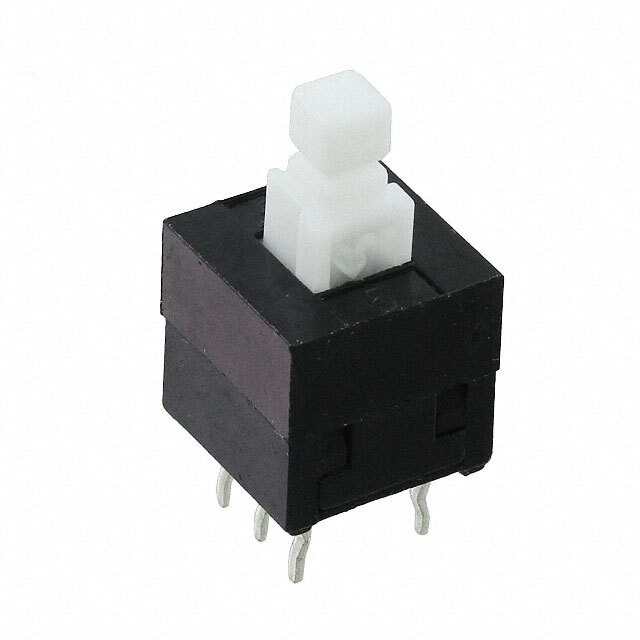

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category SwitchesPushbutton Switches
Mfr E-Switch
Series TL2201
Packaging Bulk
Part Status Active
Mounting Type Through Hole
Type Standard
Circuit DPDT
Switch Function On-On
Current Rating (Amps) 100mA (DC)
Voltage Rating - DC 30 V
Actuator Type Plunger for Cap
Actuator Marking No Marking
Termination Style PC Pin
Electrical Life 10,000 Cycles
Base Product Number TL2201
Ultra Librarian 3D Model Ultra Librarian TL2201EEZB CAD Model
