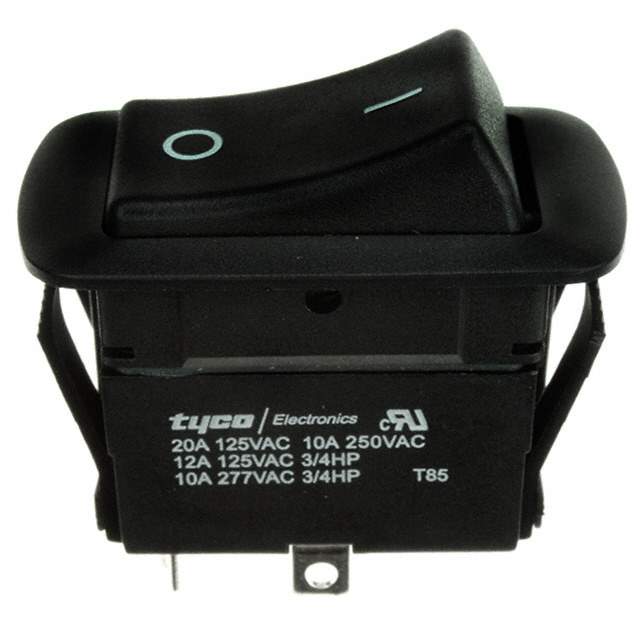

1571095-5 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>Rocker Switches
Mfr TE Connectivity ALCOSWITCH Switches
Series PRC
Package Bulk
Mounting Type Panel Mount, Snap-In
Circuit SPST
Switch Function On-Off
Current Rating (Amps) 20A (AC)
Voltage Rating - AC 125 V
Actuator Type Concave (Curved)
Color - Actuator/Cap Black
Actuator Marking O -
Termination Style Solder Lug
Ingress Protection IP66 - Dust Tight, Water Resistant
Panel Cutout Dimensions Rectangular - 36.60mm x 21.20mm
Temperature Range - Operating -20°C ~ 85°C
Mechanical Life 100,000 Cycles
Electrical Life 6,000 Cycles
Base Product Number 1571095
RoHS Status Not applicable
MSL Level Not Applicable
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.50.9065
Other Names PRCSA1-20L-BB0BW,PRCSA120LBB0BW,2266-1571095-5,450-1672
Standard Package 25
Win Source Part Number 1034837-1571095-5
Ultra Librarian 3D Model Ultra Librarian 1571095-5 CAD Model

Description

The 1034837-1571095-5 is a switch manufactured by TE Connectivity ALCOSWITCH Switches.

  • Category: Rocker Switches
  • Series: PRC
  • Termination Style: Solder lug
  • Voltage Rating - AC: 125 V
  • Ingress Protection: IP66 - Dust Tight, Water Resistant
  • Panel Cutout Dimensions: Rectangular - 36.60mm x 21.20mm
  • Circuit: SPST
  • Switch Function: On-Off
  • Actuator Type: Concave (curved)
  • Electrical Life: 6,000 cycles
  • Illumination Voltage (Nominal): Not specified
  • Illumination Type and Color: Not specified
  • Mechanical Life: 100,000 cycles
  • Color of the Actuator/Cap: Black
  • Actuator Marking: O -
  • Mounting Type: Panel mount, snap-in
  • Temperature Range - Operating: -20°C ~ 85°C
  • Alternative Parts: 1571095-6, 1571095-8, 1571095-4, TIGA50-6S-BL-NBL, LTILA50-6S-BL-RC-NBL/125N, R1966ABLKBLKESGRN, TIGB5H-6S-BL-NBL-XA, R1966ABLKBLKES1571095-5 ., and PRCSA1-20L-BB0BW
  • Current Rating (amps): 20A (AC)
  • REACH: Vendor undefined
  • HTSUS: 8536.50.9065
  • Base Product Number: 1571095
  • RoHS Status: Not applicable
