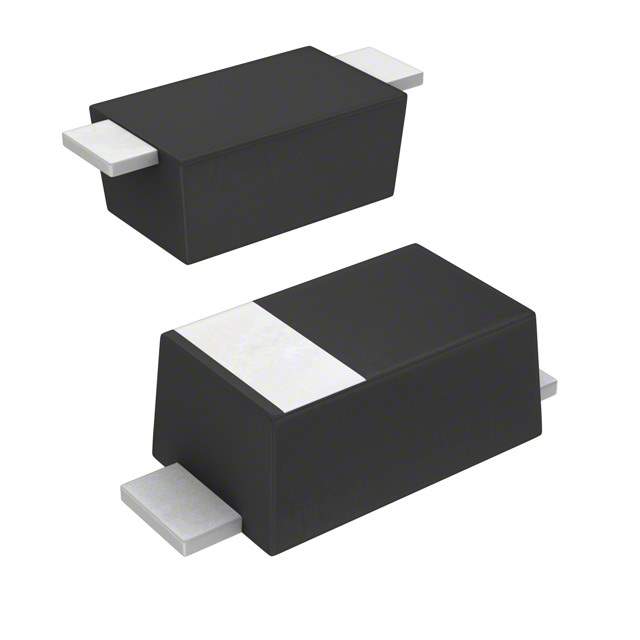

MA22D2800L Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 30V
Current - Average Rectified (Io) 1.5A
Voltage - Forward (Vf) (Max) @ If 460mV @ 1.5A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 13ns
Current - Reverse Leakage @ Vr 100μA @ 30V
Capacitance @ Vr, F 50pF @ 10V, 1MHz
Mounting SMD (SMT)
Case / Package Mini2-F1
Operating Temperature - Junction 150°C (Max)
Win Source Part Number 126322-MA22D2800L
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian MA22D2800L CAD Model

Description

The Panasonic Electronic Components 126322-MA22D2800L is a Schottky diode with a maximum reverse voltage of 30V and an average rectified current of 1.5A. The diode has a forward voltage of 460mV at 1.5A and a reverse recovery time of 13ns. This surface-mount device is suitable for use in a variety of applications and is packaged in a Mini2-F1 package. The capacitance of the diode is 50pF at 10V and 1MHz. The operating temperature range of the device is between -40 to 150 degrees Celsius. The device is obsolete and has been replaced by newer models.
