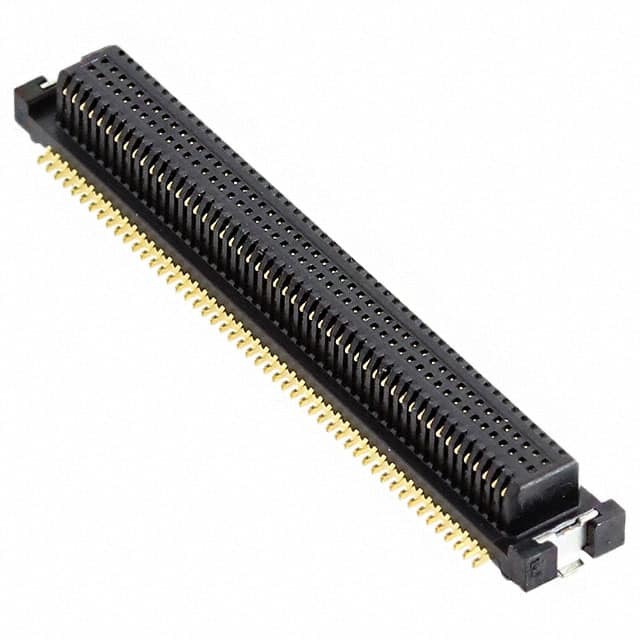

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr TE Connectivity
Series Fine Mate
Package Tape & Reel (TR)Cut Tape (CT)
Product Status Active
Connector Type Receptacle, Center Strip Contacts
Number of Positions 100
Pitch 0.020" (0.50mm)
Number of Rows 2
Mounting Type Surface Mount
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 4mm, 4.5mm, 5.5mm, 6mm
Height Above Board 0.126" (3.20mm)
Base Product Number 1565357
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 854044-1565357-1
Ultra Librarian 3D Model Ultra Librarian 1565357-1 CAD Model

Description

The 854044-1565357-1 is a fine mate rectangular connector from the Fine Mate series.

  • Series: Fine Mate
  • Positions: 100
  • Pitch: 0.020" (0.50mm)
  • Features: Solder Retention
  • Connector Type: Receptacle
  • Contact Type: Center Strip
  • Mounting Type: Surface Mount
  • Height Above Board: 0.126" (3.20mm)
  • Stacking Heights: Compatible with Various Heights
  • Manufacturer: TE Connectivity
  • Standard Package: 2,000 pieces
