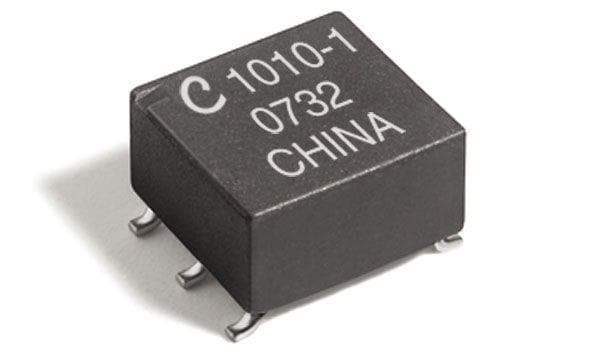

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer Coilcraft
Product RF Transformers
Termination Style SMD/SMT
Frequency Range 3.5 kHz to 125 MHz
Inductance 780 uH, 780 uH
Isolation Voltage 300 V
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 85 C
Number of Channels Dual
Application Wideband
Length 6.77 mm
Width 6.48 mm
Height 4.45 mm
Series PWB
Packaging Cut Tape
Packaging MouseReel
Packaging Reel
Current Rating 250 mA
Maximum DC Current 250 mA
Maximum DC Resistance 320 mOhms, 320 mOhms
Power Rating 250 mW (1/4 W)
Primary Resistance 320 mOhms
Secondary Resistance 320 mOhms
Shielding Shielded
Brand Coilcraft
Product Type Audio & Signal Transformers
Standard Pack Qty 250
Subcategory Transformers
