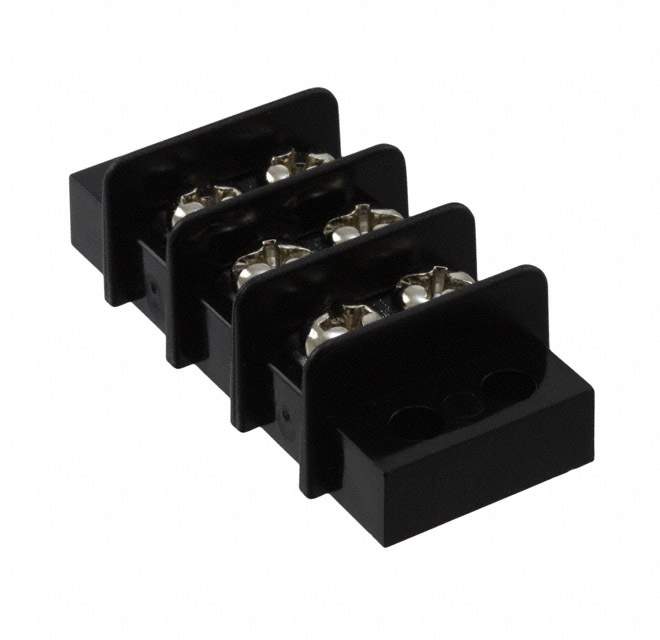

Same model may have multiple batches, images only for reference.

1546306-3

Name: 1546306-3
Brand: TE Connectivity
SKU: 1015398
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	1546306-3
Manufacturer	TE Connectivity
Catalog	Terminal Blocks
Description	CONN BARRIER STRIP 3CIRC 0.374" / 3 Circuit 0.374" (9.50mm) Barrier Block Connector Screws
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Terminal Blocks - Barrier Blocks
Mfr	TE Connectivity AMP Connectors
Series	Buchanan
Package	Bulk
Terminal Block Type	Barrier Block
Number of Circuits	3
Number of Wire Entries	6
Pitch	0.374" (9.50mm)
Number of Rows	2
Current Rating (Amps)	20A
Voltage Rating	300V
Wire Gauge	12-22 AWG
Top Termination	Screws
Bottom Termination	Closed
Barrier Type	2 Wall (Dual)
Features	Flange
Color	Black
Terminal Screw Material	Steel
Terminal Screw Finish	Nickel
Mounting Type	Chassis, Panel
Temperature Range - Operating	-40°C ~ 120°C
Material - Insulation	Thermoplastic
Material Flammability Rating	UL94 V-0
Base Product Number	1546306
MSL Level	1 (Unlimited)
REACH Status	Vendor Undefined
ECCN	EAR99
HTSUS	8536.90.4000
Other Names	15463063,A98504,2266-1546306-3,1546306-3-ND,-1546306-3-SI
Standard Package	200
Win Source Part Number	1015398-1546306-3
Ultra Librarian 3D Model	Ultra Librarian 1546306-3 CAD Model

Description

The TE Connectivity AMP Connectors Buchanan series barrier block is a high-quality terminal block that ensures secure and reliable wire connections.

Features: Flange
Mounting Type: Chassis, Panel
Pitch: 0.374 inches (9.50mm)
Wire Gauge: 12-22 AWG
Voltage Rating: 300V
Temperature Range: -40°C to 120°C
Insulation Material: Thermoplastic
Flammability Rating: UL94 V-0
Circuits: 3
Wire Entries: 6
Barrier Type: 2 Wall (Dual)
Terminal Screws Material: Steel with nickel finish
Current Rating: 20A
Package: Bulk package of 200 units
