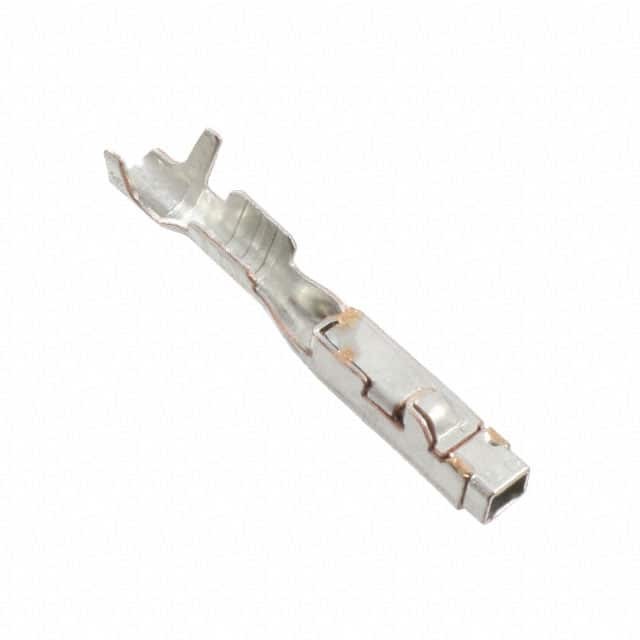

1534594-1
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Contacts
Mfr TE Connectivity
Series MCON
Package Tape & Reel (TR)Cut Tape (CT)
Product Status Active
Pin or Socket Socket
Contact Termination Crimp
Wire Gauge 22-23 AWG
Contact Finish Tin
Contact Finish Thickness 39.4µin (1.00µm)
Base Product Number 1534594
Standard Package 10,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 850754-1534594-1
Ultra Librarian 3D Model Ultra Librarian 1534594-1 CAD Model

Description

The MCON series rectangular connector contacts are designed for reliable and secure connections in various applications.

  • Contact Finish: Tin
  • Contact Finish Thickness: 39.4µin (1.00µm)
  • Wire Gauge Size: 22 to 23 AWG
  • Termination: Crimping
  • Contact Type: Socket
  • Package Type: Tape & Reel / Cut Tape
  • Standard Package: 10,000 pcs
