Same model may have multiple batches, images only for reference.

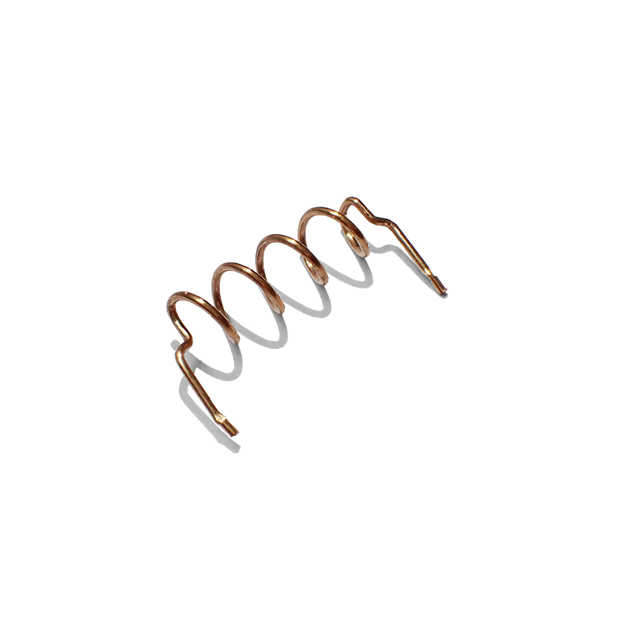

RFMTA010504NNRB002 Real Image
Same model may have multiple batches, images only for reference.

RFMTA010504NNRB002

Part No RFMTA010504NNRB002
Manufacturer Walsin Technology Corporation
Catalog RF Antennas
Description RF ANT 863-928MHZ METAL / 895.5MHz Helical RF Antenna 863MHz ~ 928MHz 1.64dBi, 2.05dBi Solder Surface Mount
Datasheet
RFMTA010504NNRB002 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Antennas
Mfr Walsin Technology Corporation
Package Bulk
Frequency Group UHF (300MHz ~ 1GHz)
Frequency (Center/Band) 895.5MHz
Frequency Range 863MHz ~ 928MHz
Antenna Type Helical
Number of Bands 1
VSWR 1.5, 2
Return Loss -10dB
Gain 1.64dBi, 2.05dBi
Power - Max 1 W
Features Cable - 285mm
Termination Solder
Mounting SMD (SMT)
Height (Max) 0.975" (24.77mm)
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8529.10.9100
Other Names 1292-RFMTA010504NNRB002
Standard Package 1,400
Win Source Part Number 989040-RFMTA010504NNRB002
Ultra Librarian 3D Model Ultra Librarian RFMTA010504NNRB002 CAD Model

Description

The RFMTA010504NNRB002 is a high-quality RF antenna that offers excellent performance and reliability from Walsin Technology Corporation.

  • Application: RF/IF and RFID
  • Cable Length: 285mm
  • Termination: Solder
  • Package: Bulk
  • Ingress Protection: Not Specified
  • Frequency Range: 863MHz ~ 928MHz
  • Return Loss: -10dB
  • Height: 0.975" (24.77mm)
  • Mounting: SMD (SMT)
