Category Connectors, Interconnects>Backplane Connectors - DIN 41612
Mfr TE Connectivity AMP Connectors
Series Eurocard
Package Bulk
Product Status Obsolete
Connector Type Receptacle, Female Sockets
Number of Positions 32 (24 + 8 Power)
Number of Positions Loaded 24
Pitch 0.100" (2.54mm)
Number of Rows 3
Style M
Level, Class 2
Mounting Type Through Hole
Termination Press-Fit
Contact Finish Gold or Gold-Palladium
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Material - Insulation Polyester, Glass Filled
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 2266-148384-5,-148384-5-SI
Standard Package 450
Win Source Part Number 999794-148384-5
Ultra Librarian 3D Model Ultra Librarian 148384-5 CAD Model

Description

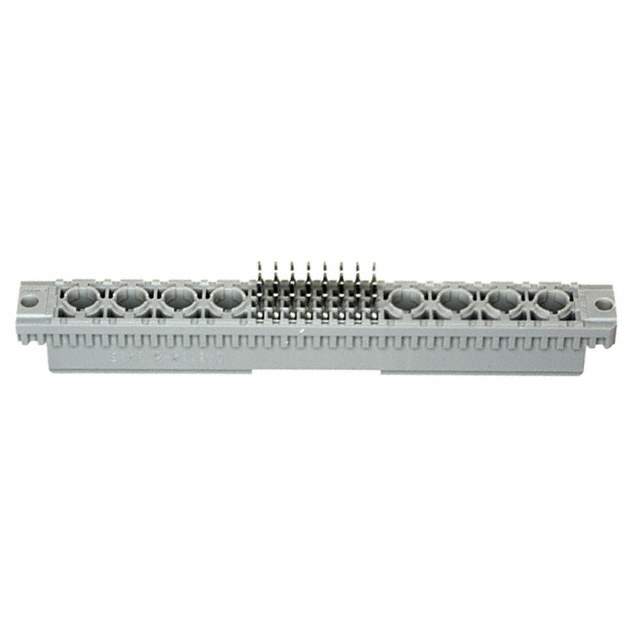

The 148384-5 Eurocard backplane connector is a 32-position (24 + 8 power) receptacle with female sockets.

  • Positions: 32 (24 + 8 Power)
  • Contact Gender: Female
  • Pitch: 0.100" (2.54mm)
  • Termination: Press-Fit
  • Insulation Material: Polyester, Glass-Filled
  • UL94 V-0 Rated: Yes
  • Contact Finish: Gold or Gold-Palladium
  • Mounting Type: Through-Hole
  • Temperature Range: -55°C to 125°C
  • Package: Bulk
  • Series: Eurocard
  • Manufacturer: TE Connectivity AMP Connectors
