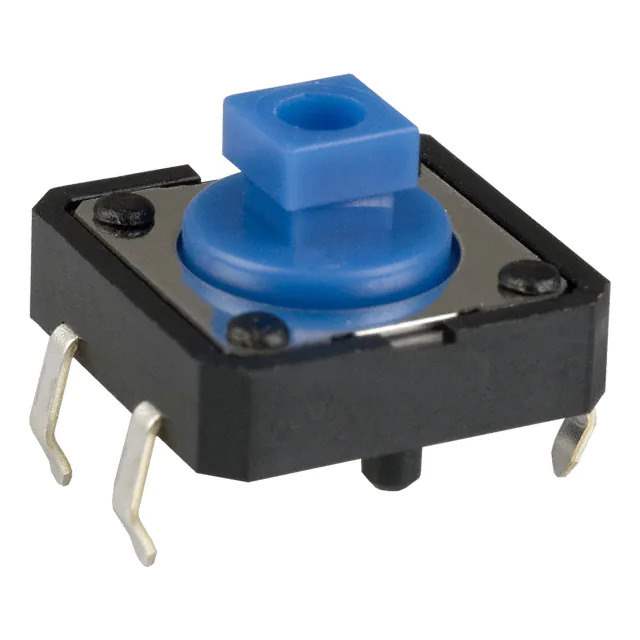

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches - Tactile Switches
Mfr Omron
Series B3F
Package Bulk
Product Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 24VDC
Actuator Type Plunger for Cap
Mounting Type Through Hole
Actuator Height off PCB, Vertical 7.30mm
Actuator Orientation Top Actuated
Termination Style PC Pin
Outline 12.00mm x 12.00mm
Illumination Non-Illuminated
Operating Force 130gf
Temperature Range - Operating -25°C ~ 70°C
Switch Travel 0.30mm
Mechanical Life 10,000,000 Cycles
Base Product Number B3F
Standard Package 500 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 568068-B3F-5050
Ultra Librarian 3D Model Ultra Librarian B3F-5050 CAD Model

Description

The B3F-5050 is a tactile switch from Omron's B3F series.

  • Termination Style: PC Pin
  • Mounting Type: Through-Hole
  • Circuit Configuration: SPST-NO
  • Switch Function: Off-Mom
  • Switch Travel: 0.30mm
  • Operating Force: 130gf
  • Contact Rating: 0.05A @ 24VDC
  • Mechanical Life: 10,000,000 cycles
  • Operating Temperature Range: -25°C to 70°C
  • Product Status: Active
