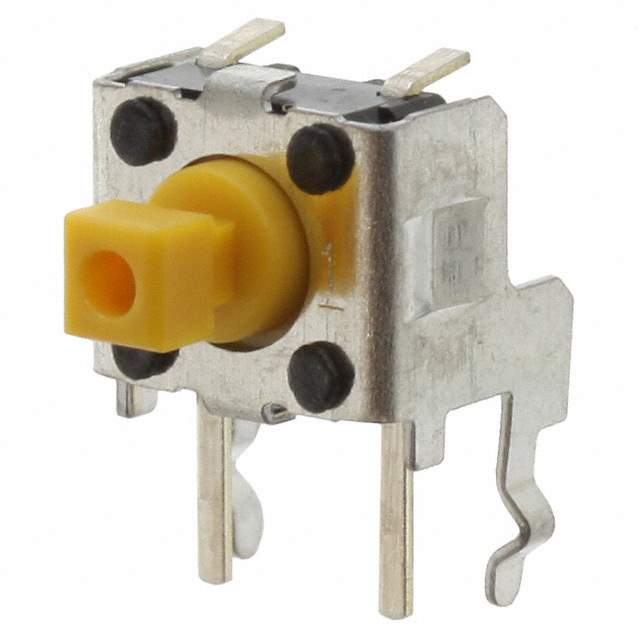

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Switches
Estimated Pruduction Lead Time 19 Weeks
Features Tactile Switch SPST-NO Side Actuated Through Hole, Right Angle
Manufacturer Omron
Series B3F
Package Bulk
Operating Temperature Range -25°C ~ 70°C
Mounting Through Hole, Right Angle
Family Name B3F
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9031
Other Part Number B3F3152, SW410, 2266-B3F-3152, Q3507170GG
Quantity per package 1000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 912519-B3F-3152
Ultra Librarian 3D Model Ultra Librarian B3F-3152 CAD Model

Description

The Omron 912519-B3F-3152 tactile switch is a high-quality switch that is designed to provide reliable and durable performance. It has a single-pole, single-throw (SPST) configuration and is side actuated through the hole, right angle.

  • Configuration: SPST
  • Actuation: Side actuated through the hole, right angle
  • Category: Switches
  • Popularity: High
  • ECCN: EAR99
  • MSL level: 1 (Unlimited)
