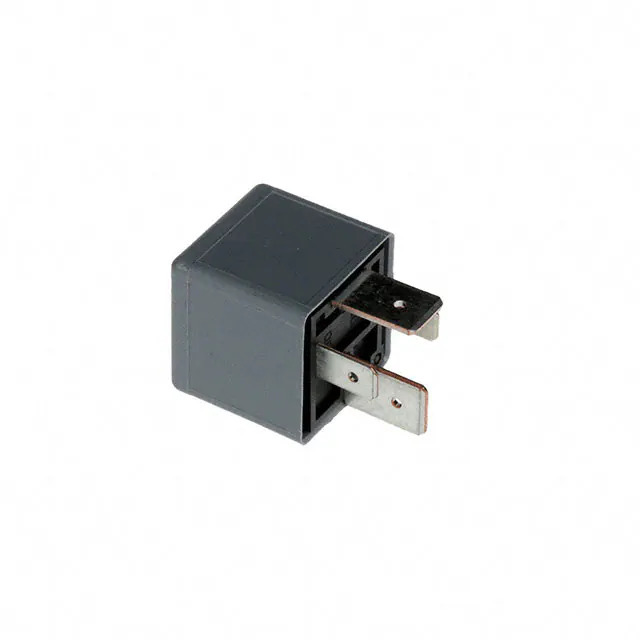

1393304-5 TE Connectivity
Same model may have multiple batches, images only for reference.

1393304-5

Part No 1393304-5
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 70A 24V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr TE Connectivity Potter & Brumfield Relays
Series -
Package Bulk
Product Status Obsolete
Mounting Type Socketable
Coil Voltage 24VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 70 A
Switching Voltage 24VDC - Nom
Coil Current 89.6 mA
Coil Type Non Latching
Features -
Termination Style Quick Connect - 0.187"/0.250"
Seal Rating -
Coil Insulation -
Must Operate Voltage 16 VDC
Must Release Voltage 4 VDC
Operate Time 7 ms
Release Time 2 ms
Temperature Range - Operating -40°C ~ 125°C
Contact Material Silver Alloy
Relay Type General Purpose
Coil Resistance 268 Ohms
Base Product Number 1393304
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 1373417-1393304-5
Ultra Librarian 3D Model Ultra Librarian 1393304-5 CAD Model

Description

The TE Connectivity Potter & Brumfield Relays is a power relay designed for applications requiring a high current rating.

  • Contact Rating: 70 A
  • Switching Voltage: 24VDC
  • Contact Form: SPST-NO (1 Form A)
  • Coil Voltage: 24VDC
  • Termination Style: Quick Connect 0.187"/0.250"
  • Operating Temperature: -40°C to 125°C
  • Coil Type: Non-Latching
  • Coil Resistance: 268 Ohms
  • Mounting Type: Socketable
