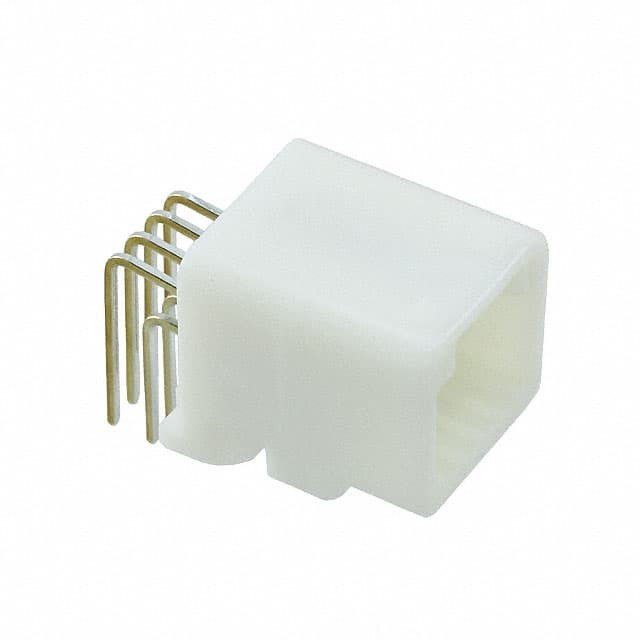

Same model may have multiple batches, images only for reference.

1376350-2

Name: 1376350-2
Brand: TE Connectivity
SKU: 845800
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	1376350-2
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN HEADER R/A 8POS 2.2MM / Connector Header Through Hole, Right Angle 8 position 0.087" (2.20mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	TE Connectivity
Package	Tube
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.087" (2.20mm)
Number of Positions	8
Number of Rows	2
Row Spacing - Mating	0.118" (3.00mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Latch Holder
Contact Length - Mating	0.217" (5.50mm)
Contact Length - Post	0.157" (4.00mm)
Insulation Height	0.610" (15.49mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Mounting Flange
Temperature Range - Operating	-30°C ~ 105°C
Material Flammability Rating	UL94 HB
Insulation Color	Natural
Voltage Rating	12VDC
Applications	Automotive
Base Product Number	1376350
Standard Package	32 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	845800-1376350-2
Ultra Librarian 3D Model	Ultra Librarian 1376350-2 CAD Model

Alternative Products

Description

The 8-position male pin header connector is a versatile component designed for automotive applications.

Positions: 8
Application: Automotive
Mounting Feature: Mounting Flange
Connector Type: Header
Contact Gender: Male Pin
Positions Loaded: All
Number of Rows: 2
Termination: Soldering
Fastening Type: Latch Holder
Insulation Material: Polybutylene Terephthalate (PBT) and Glass-Filled
Style: Board-to-Cable/Wire
Mating Pitch: 0.087 inches (2.20mm)
Contact Finish: Tin
Operating Temperature: -30°C to 105°C
