IPD1-10-D-K Samtec Inc. – Price, Stock & Datasheet

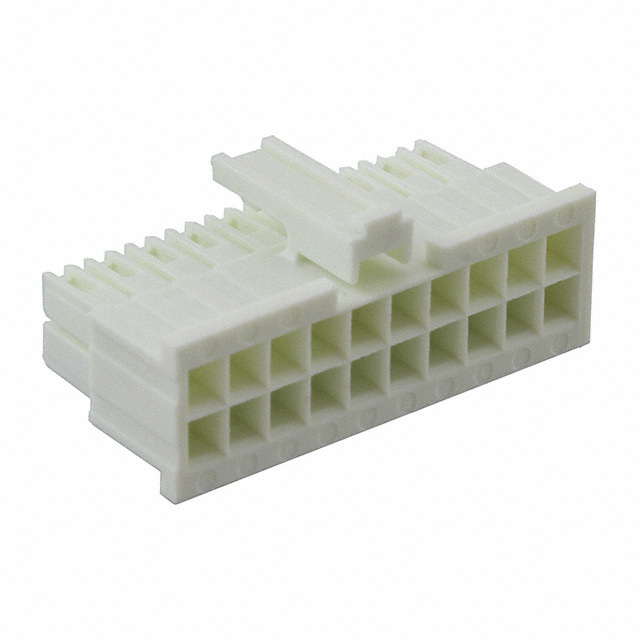

Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, InterconnectsRectangular ConnectorsRectangular Connector Housings
Mfr Samtec Inc.
Series Mini Mate? IPD1
Packaging Bulk
Part Status Active
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 20
Pitch 0.100" (2.54mm)
Number of Rows 2
Row Spacing 0.100" (2.54mm)
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type Latch Lock
Color White
Features Polarizing Key
Insulation Material Polyamide (PA66), Nylon 6/6
Note Contacts Not Included
Base Product Number IPD1-10
Ultra Librarian 3D Model Ultra Librarian IPD1-10-D-K CAD Model
