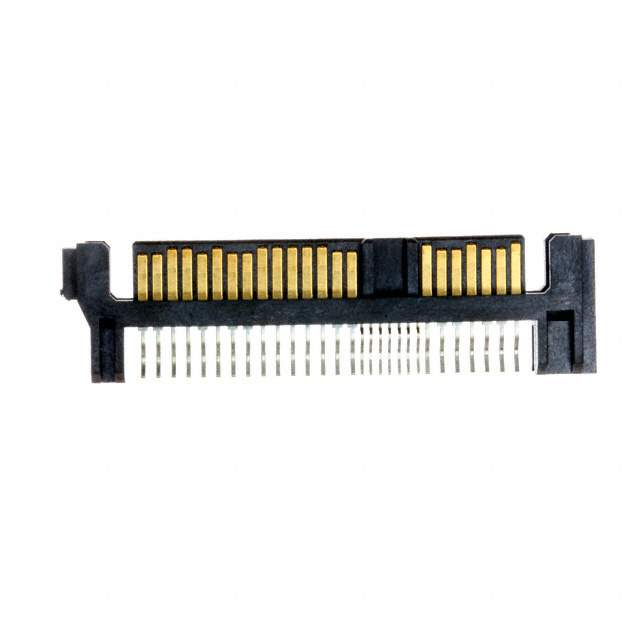

SBH-ST-29-SA-ML Real Image
Same model may have multiple batches, images only for reference.

SBH-ST-29-SA-ML

Part No SBH-ST-29-SA-ML
Manufacturer 3M
Catalog Pluggable Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Pluggable Connectors
Mfr 3M
Series SBH
Package Tray
Product Status Obsolete
Connector Style Plug
Connector Type SAS
Number of Positions 29
Mounting Type Board Edge, Straddle Mount
Termination Solder
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Other Names 00051111753118,3M5487,5111175311,51111753118,SBHST29SAML,XE004219772
Standard Package 1,800
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1294052-SBH-ST-29-SA-ML
Ultra Librarian 3D Model Ultra Librarian SBH-ST-29-SA-ML CAD Model

Description

The 1294052-SBH-ST-29-SA-ML is a 29-position plug connector from the SBH series of connectors by 3M.

  • Mounting: Board edge or straddle mounting
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Termination: Solder
  • Package: Tray
  • Standard Package: 1,800
  • MSL level: 1 (unlimited)
  • HTSUS: 8536.69.4040
  • Description: The connector is designed for use in electronic devices.
