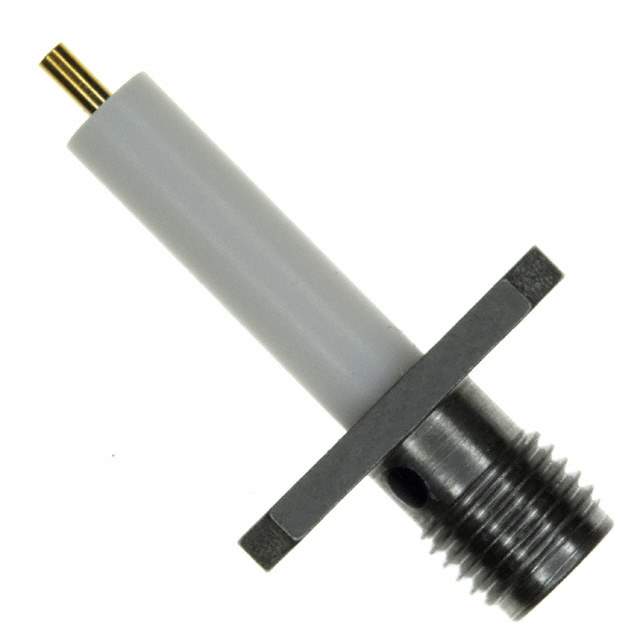

1052552-1 Real Image
Same model may have multiple batches, images only for reference.

1052552-1

Part No 1052552-1
Manufacturer TE Connectivity
Catalog Coaxial Connectors (RF)
Description CONN SMA RCPT STR 50 OHM SOLDER / SMA Connector Receptacle, Female Socket 50Ohm Panel Mount Solder
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF)
Mfr TE Connectivity AMP Connectors
Package Bulk
Product Status Obsolete
Connector Style SMA
Connector Type Receptacle, Female Socket
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Mounting Type Panel Mount
Mounting Feature Flange
Fastening Type Threaded
Frequency - Max 18 GHz
Number of Ports 1
Features Extended Insulation
Housing Color Silver
Center Contact Material Beryllium Copper
Body Material Stainless Steel
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -65°C ~ 125°C
Voltage Rating 335 V
Mating Cycles 500
Base Product Number 1052
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4010
Other Names 10525521,2052 1352 02,1052552-1-ND,A99398
Standard Package 50
Win Source Part Number 1035640-1052552-1
Ultra Librarian 3D Model Ultra Librarian 1052552-1 CAD Model

Description

This SMA connector from TE Connectivity AMP Connectors is a receptacle female socket that has extended insulation and is threaded for fastening.

  • Voltage Rating: 335V
  • Maximum Frequency: 18GHz
  • Housing Color: silver
  • Ports: one
  • Impedance: 50Ohm
  • Mounting Feature: flange
  • Material: stainless steel
  • Center Contact Material: beryllium copper
  • Center Contact Plating: gold
  • Operating Temperature: -65°C to 125°C
  • REACH Affected: true
