Same model may have multiple batches, images only for reference.

1051942-1

Name: 1051942-1
Brand: TE Connectivity
SKU: 1178894
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	1051942-1
Manufacturer	TE Connectivity
Catalog	Coaxial Connectors (RF)
Description	CONN SMA JACK STR 50 OHM SOLDER / SMA Connector Jack, Female Socket 50Ohm Panel Mount Solder
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Coaxial Connectors (RF)
Mfr	TE Connectivity AMP Connectors
Package	Bulk
Product Status	Obsolete
Connector Style	SMA
Connector Type	Jack, Female Socket
Contact Termination	Solder
Shield Termination	Solder
Impedance	50Ohm
Mounting Type	Panel Mount
Mounting Feature	Bulkhead - Front Side Nut
Cable Group	RG-174, 179, 187, 188, 316
Fastening Type	Threaded
Frequency - Max	12.4 GHz
Number of Ports	1
Housing Color	Gold
Center Contact Material	Beryllium Copper

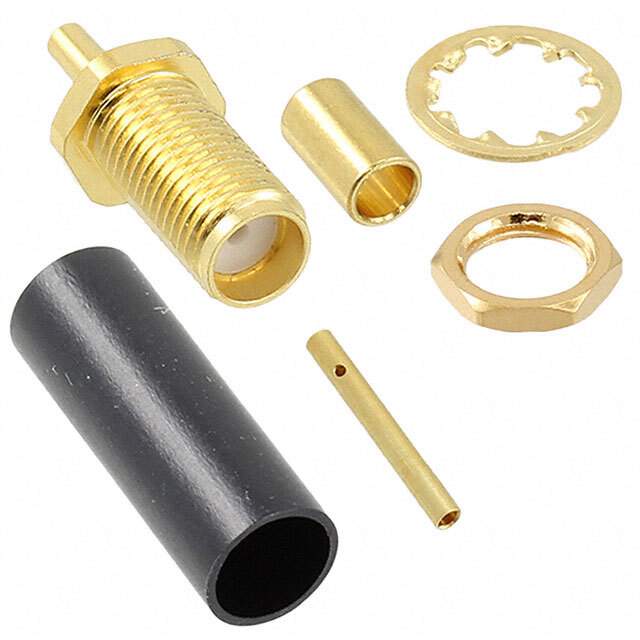

Includes	6 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Heat Shrink, 1 Lockwasher, 1 Nut
Body Material	Stainless Steel
Body Finish	Gold
Center Contact Plating	Gold
Dielectric Material	Polytetrafluoroethylene (PTFE)
Temperature Range - Operating	-65°C ~ 165°C
Voltage Rating	250 V
Mating Cycles	500
Base Product Number	1051
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4010
Other Names	-2034-5008-00-SI,-1051942-1-SI,10519421,A111730,1051942-1-ND,-2034-5008-00-SI-ND,2034-5008-00,2266-1051942-1
Standard Package	1
Win Source Part Number	1178894-1051942-1
Ultra Librarian 3D Model	Ultra Librarian 1051942-1 CAD Model

Alternative Products

Description

The TE Connectivity AMP Connectors 1178894-1051942-1 is a female socket connector that belongs to the Coaxial Connectors (RF) category.

Type: SMA Connector
Voltage Rating: 250V
Maximum Frequency: 12.4GHz
Impedance: 50Ohm
Mounting: Bulkhead-Front Side Nut
Material: Stainless Steel
Finish: Gold
Package: Bulk
Contact Termination: Solder
Operating Temperature: -65°C to 165°C
Status: Obsolete
