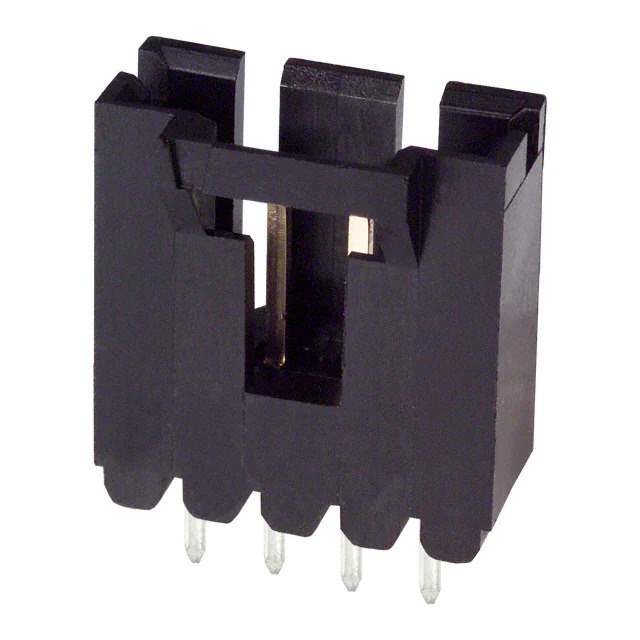

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity
Series AMPMODU MTE
Package Tube
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 4
Number of Rows 1
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Latch Holder
Contact Length - Mating 0.230" (5.84mm)
Contact Length - Post 0.130" (3.30mm)
Insulation Height 0.535" (13.60mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15.0µin (0.38µm)
Contact Finish - Post Tin-Lead
Contact Material Brass
Insulation Material Thermoplastic
Features Keying Slot
Insulation Color Black
Contact Finish Thickness - Post 100.0µin (2.54µm)
Applications Automotive, General Purpose, Medical, Telecommunications
Base Product Number 103638
Standard Package 42 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 849096-103638-3
Ultra Librarian 3D Model Ultra Librarian 103638-3 CAD Model

Description

The 849096-103638-3 is a male pin header connector from TE Connectivity.

  • Series: AMPMODU MTE
  • Positions: 4
  • Keying Slot: Yes
  • Termination Type: Solder
  • Fastening Type: Latch Holder
  • Package: Tube
  • Package Quantity: 42 pcs
  • Contact Material: Brass
  • Contact Finish Thickness: 15.0μin (0.38μm)
  • Mounting Type: Through-Hole
  • Shrouding: Shrouded - 4 wall
  • REACH: Affected
  • HTSUS: 8536.69.4040
