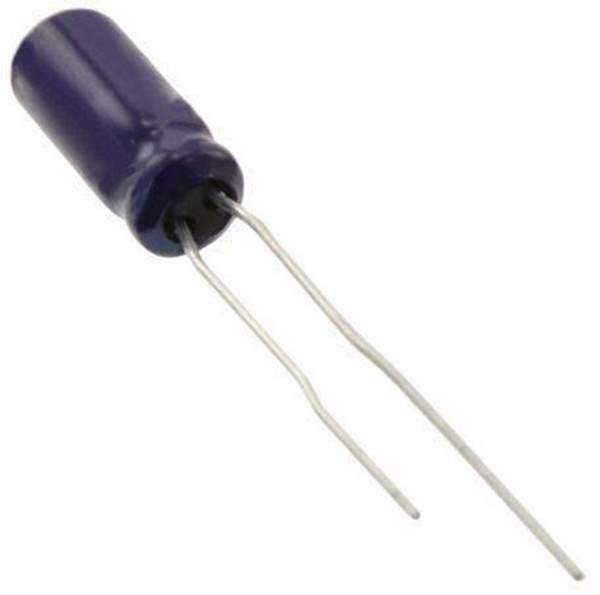

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer Panasonic Electronic Components
Category Capacitors Aluminum Electrolytic Capacitors
Packaging  Bulk
Part Status Active
Capacitance 10 µF
Tolerance ±20%
Voltage - Rated 25 V
Lifetime @ Temp. 2000 Hrs @ 85°C
Operating Temperature -40°C ~ 85°C
Ripple Current @ High Frequency 85 mA @ 10 kHz
Lead Spacing 0.079" (2.00mm)
Win Source Part Number WS1306070-ECA-1EM100
Ultra Librarian 3D Model Ultra Librarian ECA-1EM100 CAD Model

Description

Features<br />● Endurance : 85 °C 2000 h ● Smaller than series SU ● RoHS compliant<br />
