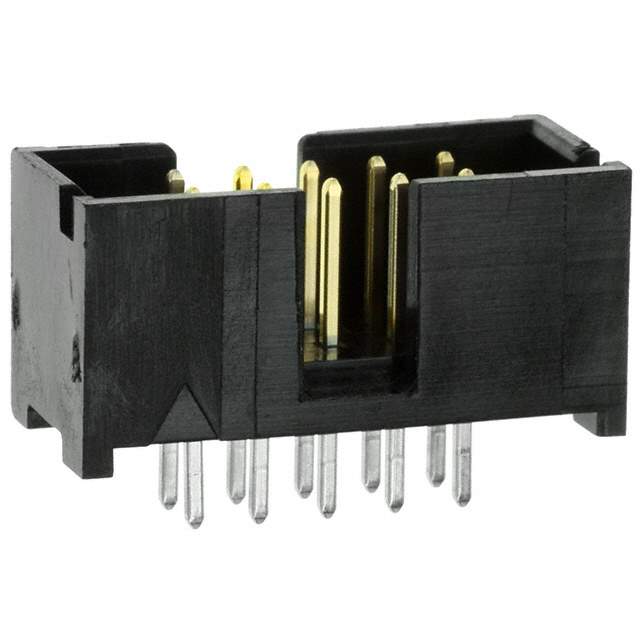

103308-1 Real Image
Same model may have multiple batches, images only for reference.

103308-1

Part No 103308-1
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER VERT 10POS 2.54MM  /  Connector Header Through Hole 10 position 0.100" (2.54mm)
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series AMP-Latch
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 10
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.240" (6.10mm)
Contact Length - Post 0.120" (3.05mm)
Insulation Height 0.388" (9.86mm)
Contact Shape Square
Contact Finish - Mating Gold or Gold-Palladium
Contact Finish Thickness - Mating 15.0µin (0.38µm)
Contact Finish - Post Tin-Lead
Contact Material Brass
Features Keying Slot
Temperature Range - Operating -65°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 1A per Contact
Contact Finish Thickness - Post 100.0µin (2.54µm)
Base Product Number 103308
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 2266-103308-1,A26267,103308-1-ND
Standard Package 125
Win Source Part Number 1216196-103308-1
Ultra Librarian 3D Model Ultra Librarian 103308-1 CAD Model

Description

The 1216196-103308-1 is a rectangular connector header male pin component from TE Connectivity AMP Connectors.

  • Number of Positions: 10
  • Number of Rows: 2
  • Pitch: 0.100 inches (2.54mm)
  • Current Rating: 1A per contact
  • Applications: board to cable/wire
  • Termination: solder
  • Packaging: bulk
  • Shrouding: shrouded - 4 wall
  • Contact Material: brass
  • Contact Finish: gold or gold-palladium for mating and tin-lead for post
  • Supply and Demand Status: balanced
